2020最新版樹莓派高畫質攝影鏡頭
商品特色：

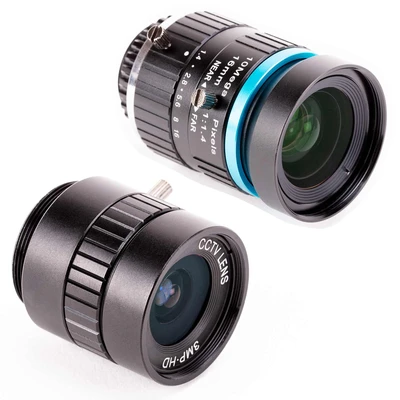

The new High Quality Camera from Raspberry Pi is compatible with C or CS-mount lenses. We have two options available – 6mm 3MP Wide Angle and 16mm 10MP Telephoto (select option above).
Please note: This listing is for one lens. Select either the 6mm or 16mm from the available options.
Please note: Raspberry Pi High Quality Camera not included – available separately here.

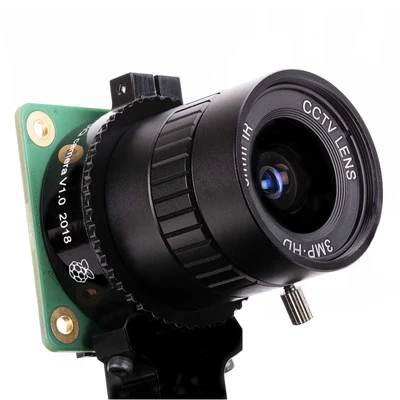

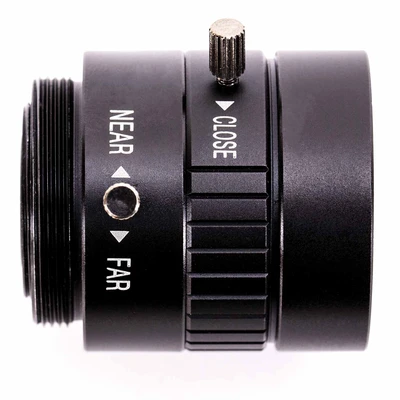

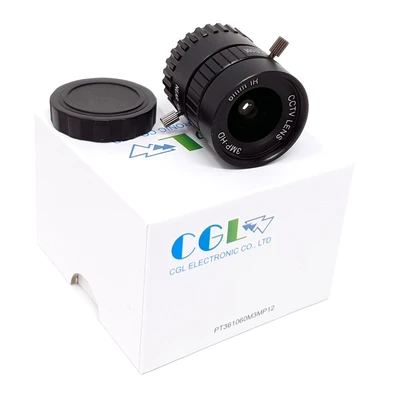

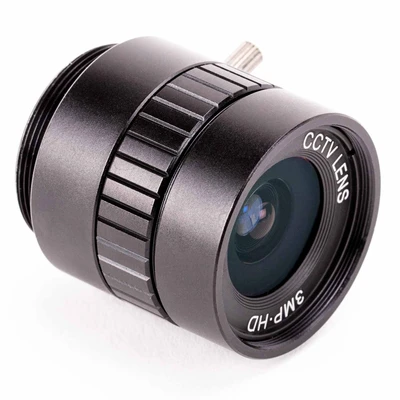

The 6mm 3MP Wide Angle lens is great for CCTV-style applications with its wide field of view, allowing you to see more of the overall target area.

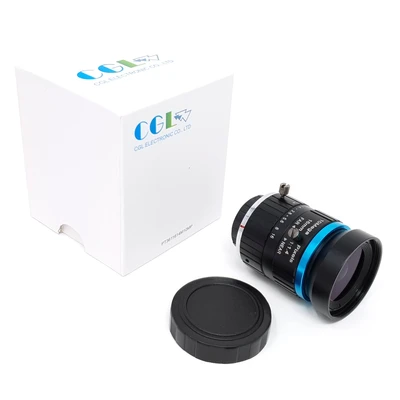

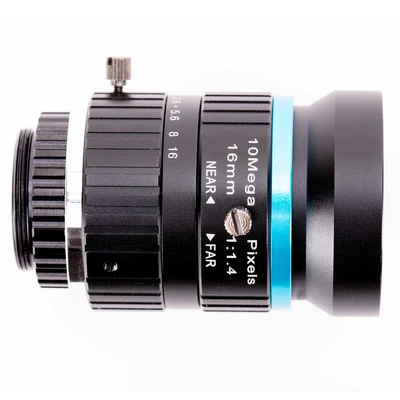

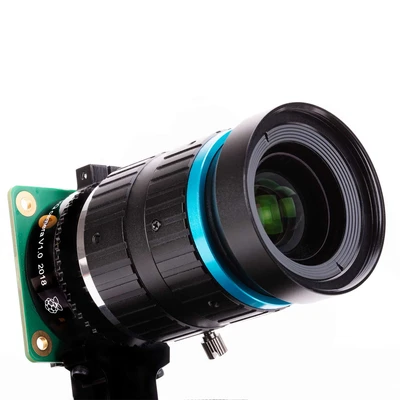

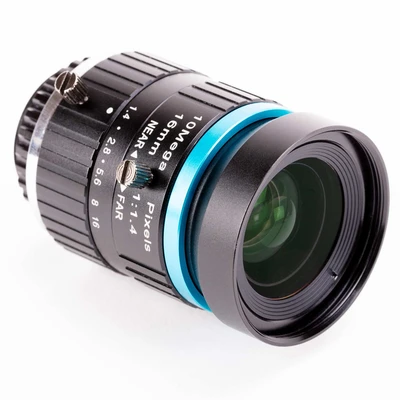

The 16mm 10MP Telephoto lens offers a high-level of zoom, for targeting your camera on specific subjects.
The lenses screw directly on to the Raspberry Pi High Quality Camera and feature multiple adjustment options (via thumb screws) for greater flexibility and image refinement.
Covers for the front and rear of the lenses are included and come pre-fitted.
Features:
- Compatible with the Raspberry Pi High Quality Camera
- Thumbscrew adjustment
- Adjustable aperture from F1.4 to F16
- Covers on front and back
Resources
Specification:
| Feature | 6mm 3MP | 16mm 10MP |
| Image format | 1/2″ | 1″ |
| Focal length | 6mm | 16mm |
| Resolution | 3 Megapixel | 10 Megapixel |
| Aperture | F1.2 | F1.4 to F16 |
| Mount | CS | C |
| Field Angle | 63° | 1″ 44.6°× 33.6° 2/3″ 30.0°× 23.2° 1/1.8” 24.7°× 18.6° 1/2″ 21.8°× 16.4° |
| Distortion | – | 1″ (-0.7%) 1/2″ (-0.5%) 1/3″ (-0.15%) |
| M.O.D | 0.2m | 0.2m |
| Back focal length | 7.53mm | 17.53mm |
| Optical length | – | 67.53mm |
| Dimensions | 30x34mm | 39x50mm |
| Weight | 53g | 133.7g |
