描述

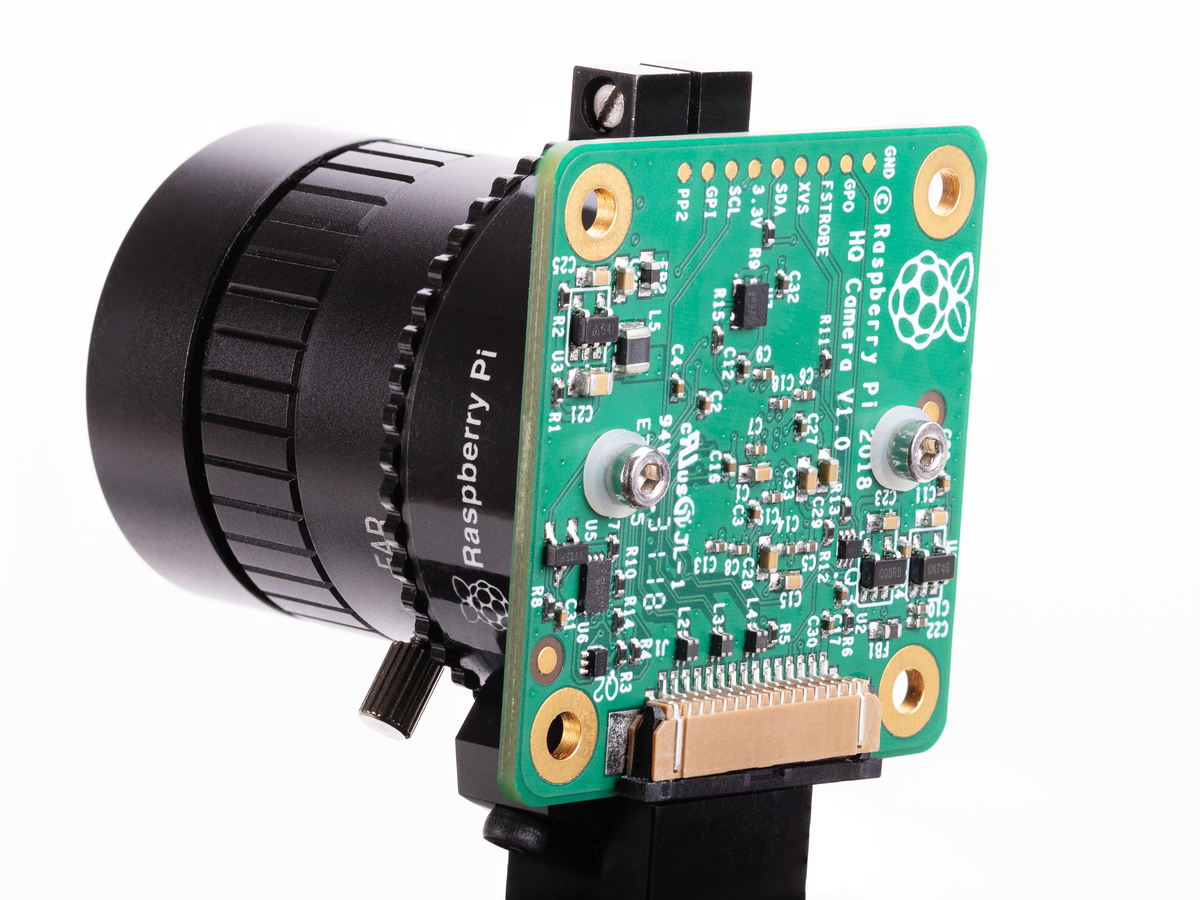

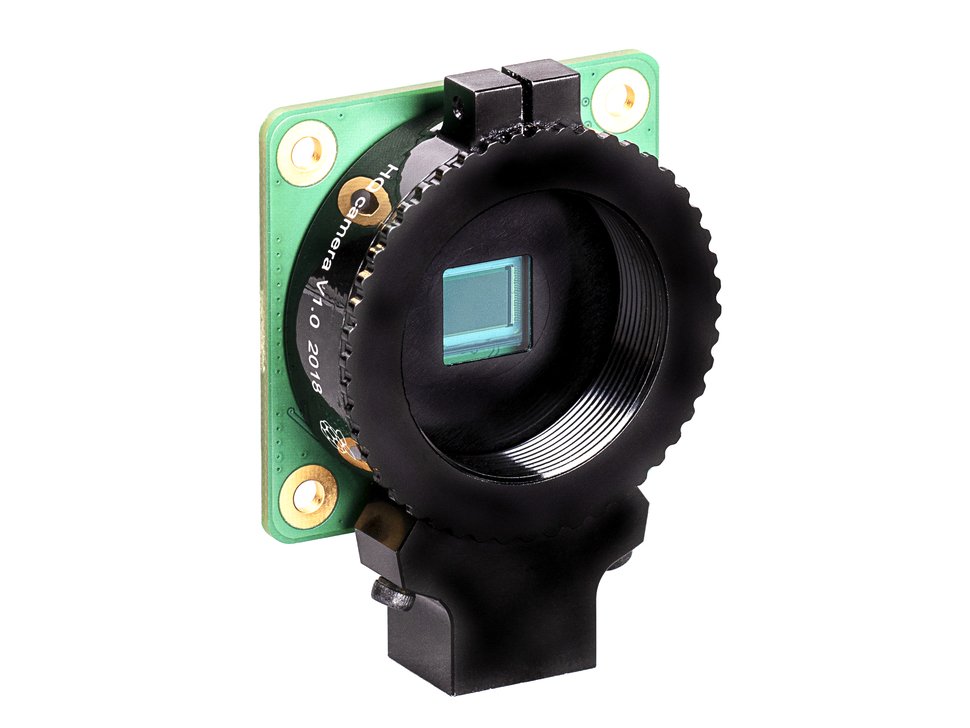

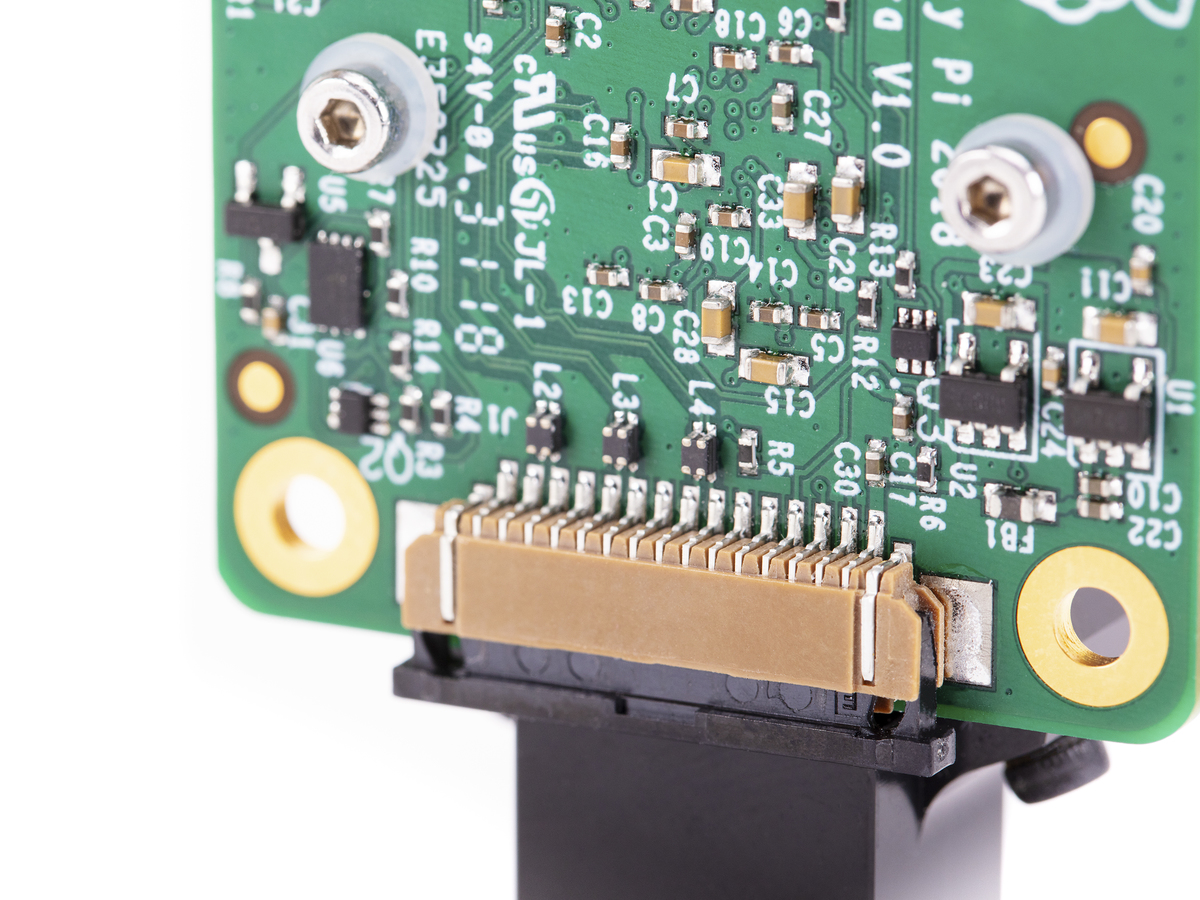

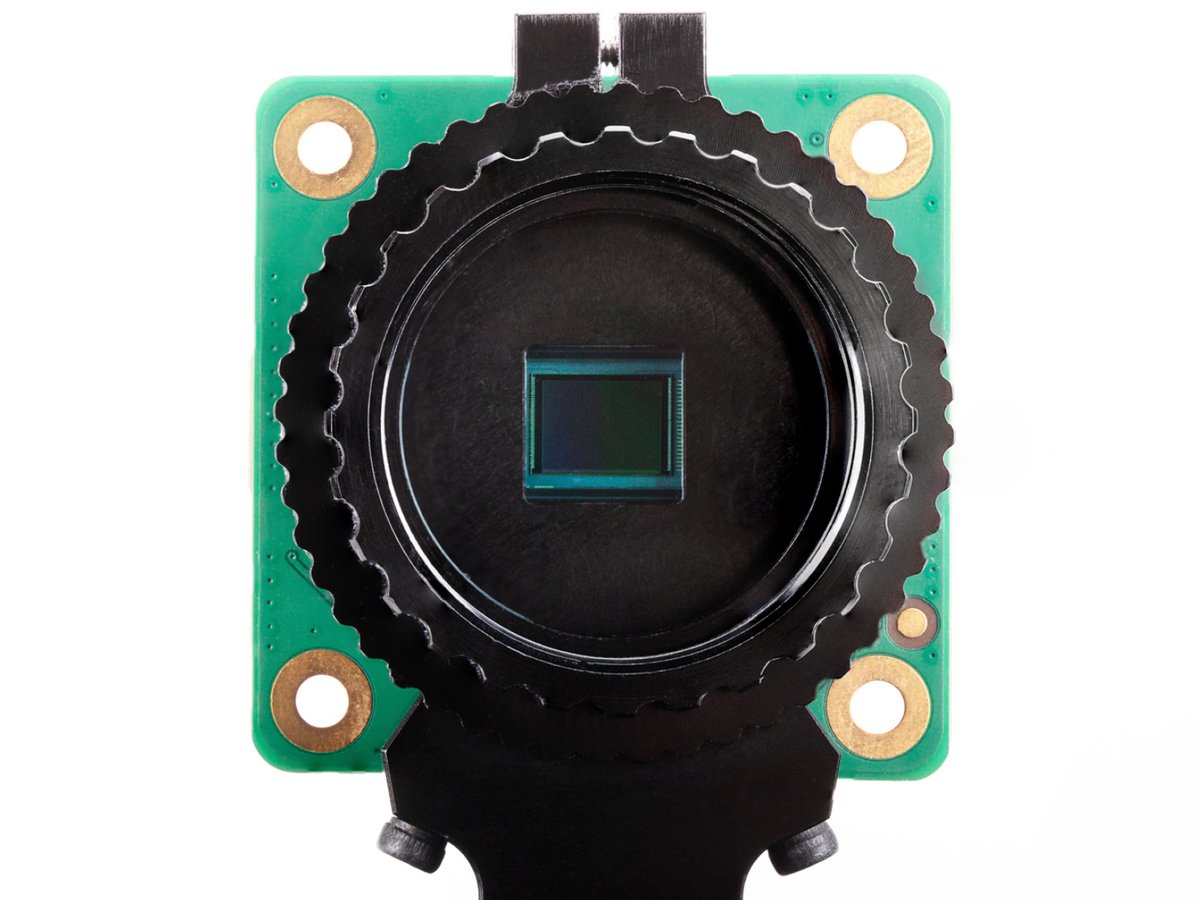

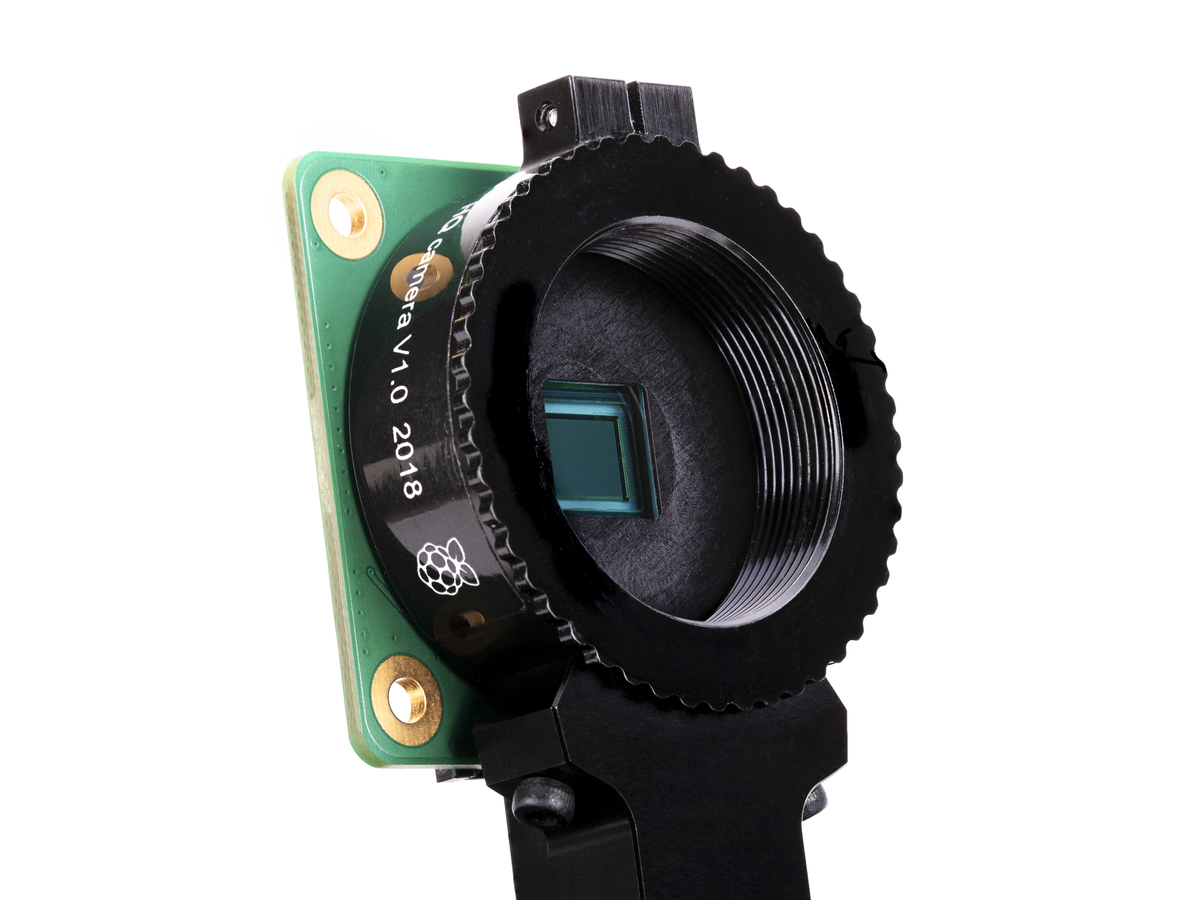

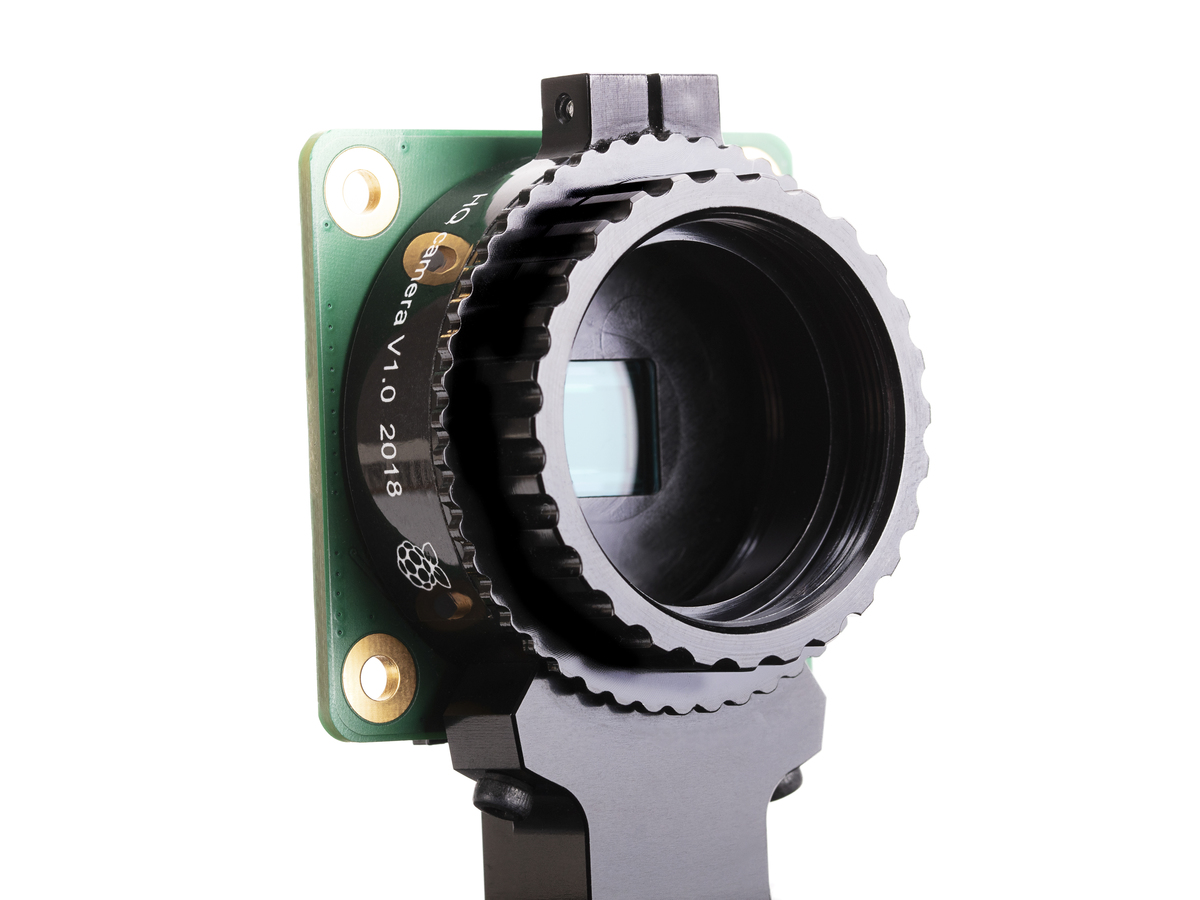

樹莓派高畫質攝影鏡頭模組(High Quality, 12.3M, Sony IMX477)

商品特色：

• • 12.3-Megapixel high-resolution Sony IMX477 sensor
  • 1.55μm × 1.55μm Pixel Size – double the pixel area of IMX219 for improved low-light performance
  • Back-illuminated sensor architecture for improved sensitivity
  • Support for different C- and CS-mount lenses

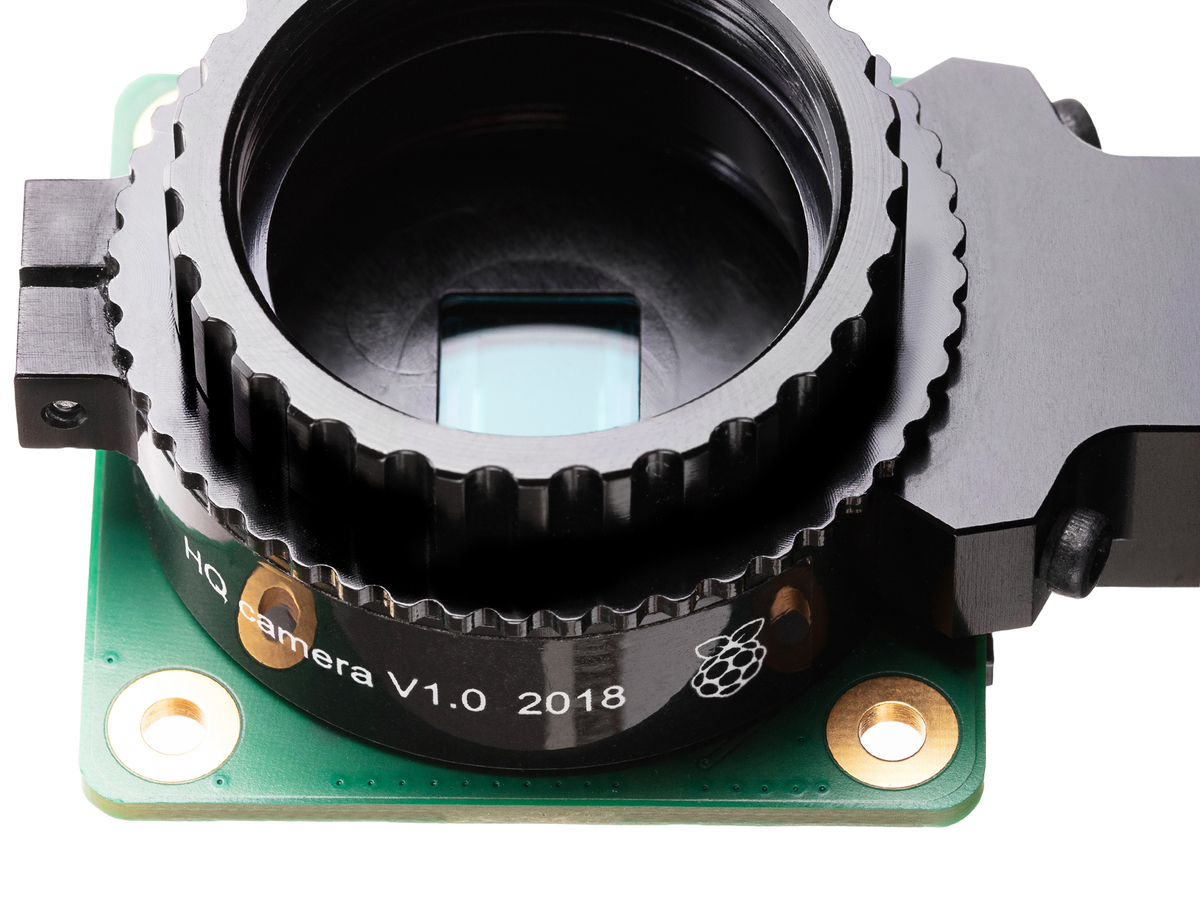

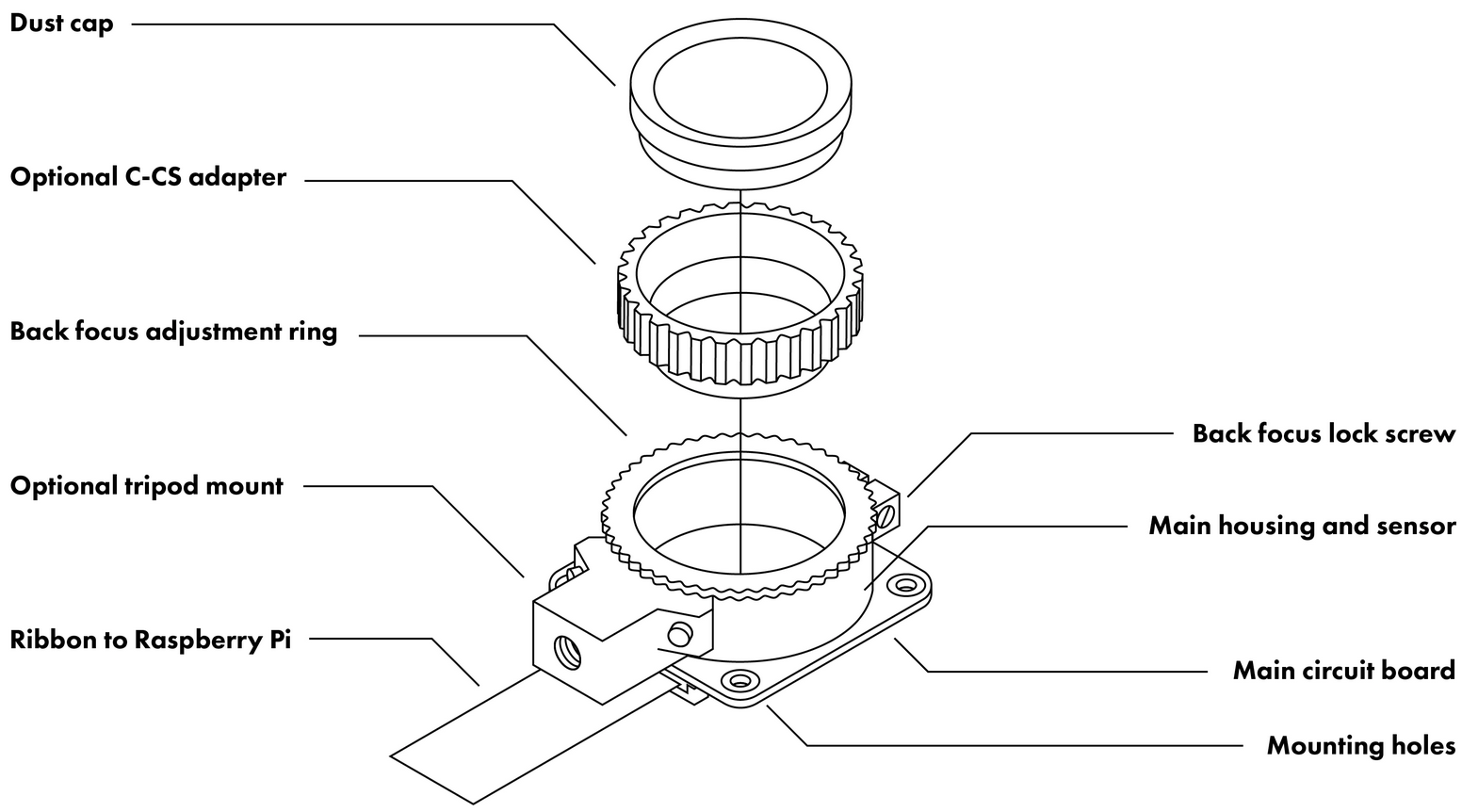

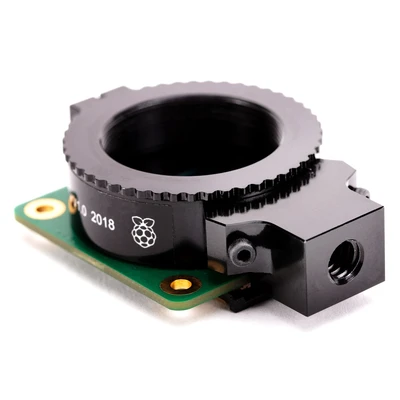

  • Integrated back-focus adjustment ring and tripod mount
  • Compare table between the Raspberry Pi Camera Modules.


    	Camera Module v1	Camera Module v2	High Quality Camera
    Still resolution	5 Megapixels	5 Megapixels	12.3 Megapixels
    Video modes	1080p@30fps 720p@60fps 640×480@60/90fps	1080p@30fps 720p@60fps 640×480p60/90fps	1080p@30fps 720p@60fps 640×480p@60/90fps
    Sensor	OmniVision OV5647	Sony IMX219	Sony IMX477
    Sensor resolution	2592 × 1944 pixels	3280 × 2464 pixels	4056 x 3040 pixels
    Sensor image area	3.76 × 2.74 mm	3.68 x 2.76 mm (4.6 mm diagonal)	6.287mm x 4.712 mm (7.9mm diagonal)
    Pixel size	1.4 µm × 1.4 µm	1.12 µm x 1.12 µm	1.55 µm x 1.55 µm
    Focal length	3.60 mm +/- 0.01	3.04 mm	depends on lens
    Horizontal field of view	53.50 +/- 0.13 degrees	62.2 degrees	depends on lens
    Vertical field of view	41.41 +/- 0.11 degrees	48.8 degrees	depends on lens
    Focal ratio (F-Stop)	2.9	2.0	depends on lens

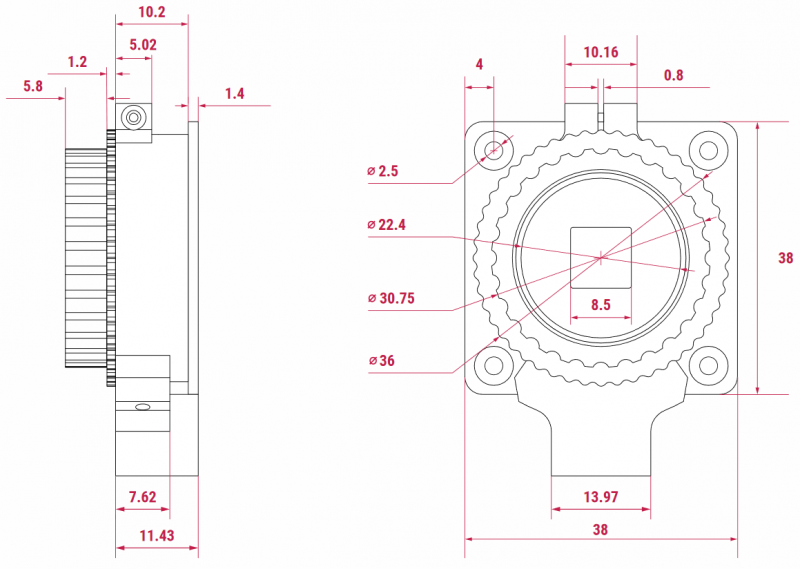

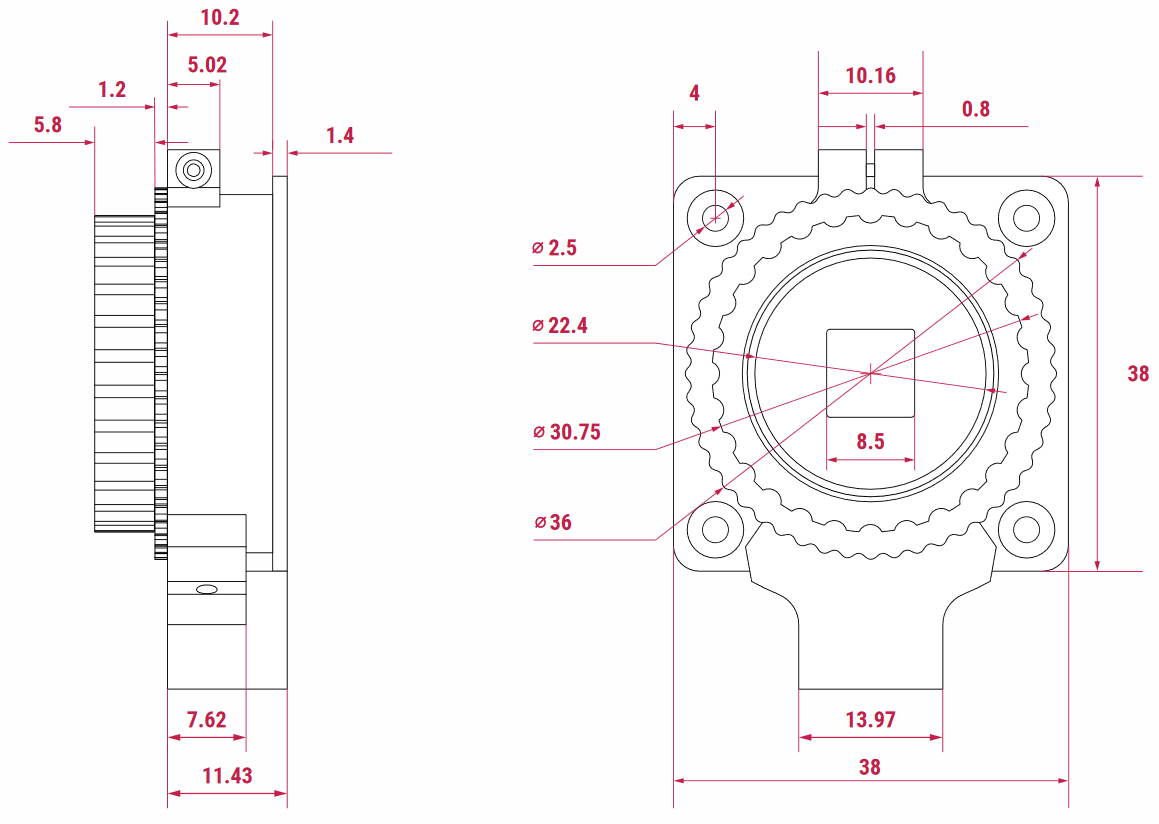

    Size	25 × 24 × 9 mm	25 x 23 x 9mm	38 x 38 x 18.4mm (excluding lens)

  • Specifications


    Sensor	Sony IMX477R stacked, back-illuminated sensor
    	12.3 megapixels
    	7.9 mm sensor diagonal
    	1.55 μm × 1.55 μm pixel size
    Output	RAW12/10/8, COMP8
    Back focus	Adjustable (12.5 mm–22.4 mm)
    Lens standards	CS-mount
    	C-mount (C-CS adapter included)
    IR cut filter	Integrated
    Ribbon cable length	200 mm
    Tripod mount	1/4”-20
    Compliance	FCC 47 CFR Part 15, Subpart B, Class B Digital Device
    	Electromagnetic Compatibility Directive (EMC) 2014/30/EU
    	Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
    Production Lifetime	The Raspberry Pi High Quality Camera will remain in production until at least January 2026

相關資料：

Product Brief

Getting Started Guide

Fitting Instructions for a typical C-mount lens

Fitting Instructions for a typical CS-mount lens

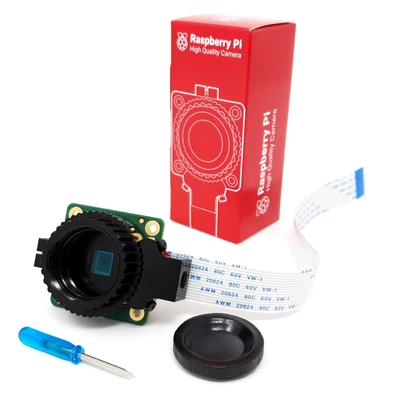

商品內容：

1 x Raspberry Pi High Quality Camera
1 x C-mount to CS-mount adapter
1 x Dust Cap
1 x 200mm Ribbon Cable
1 x Back focus adjustment tool
