描述
2020全新樹莓派運算模組4 I/O模組(Compute Module 4)

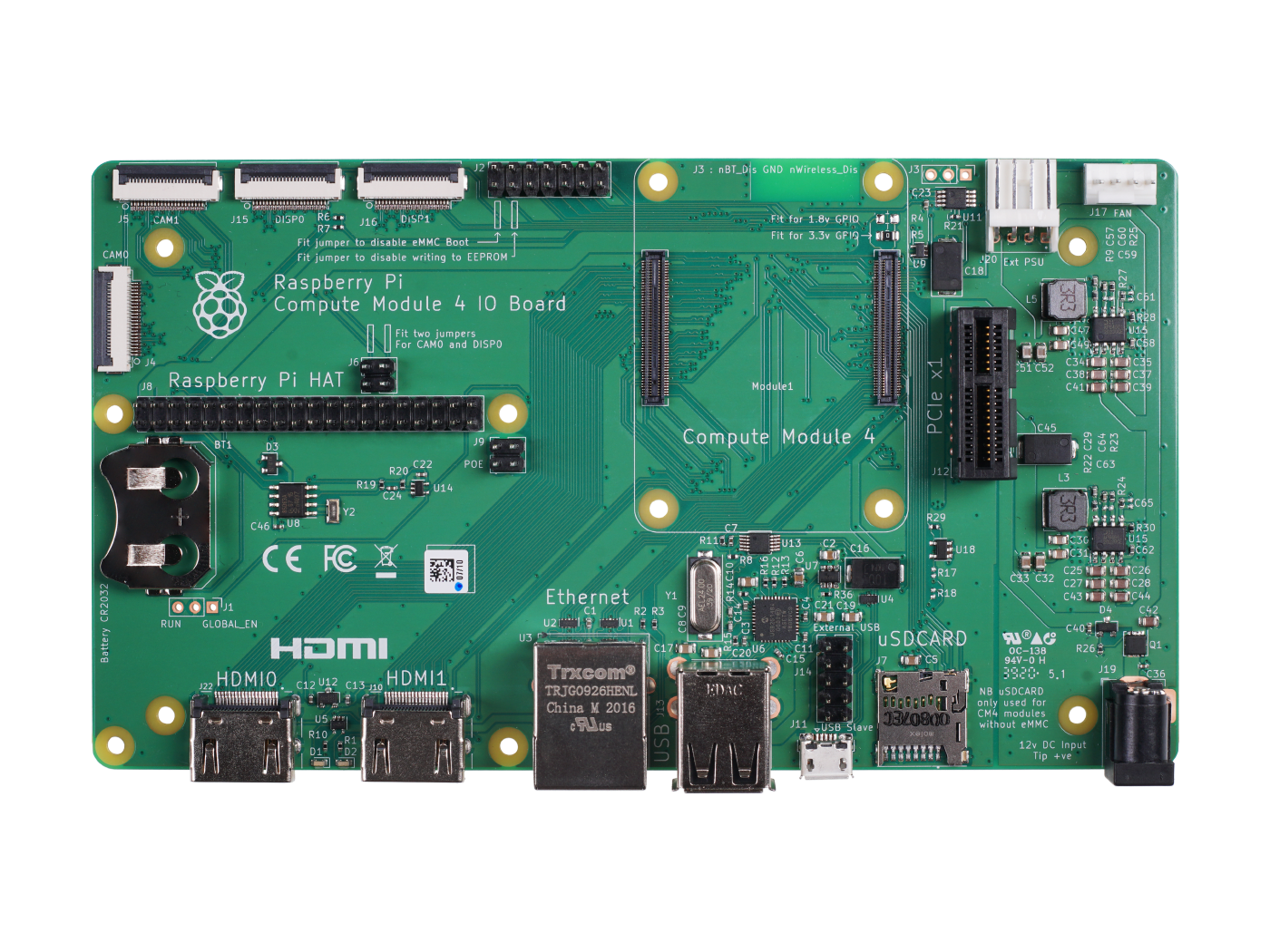

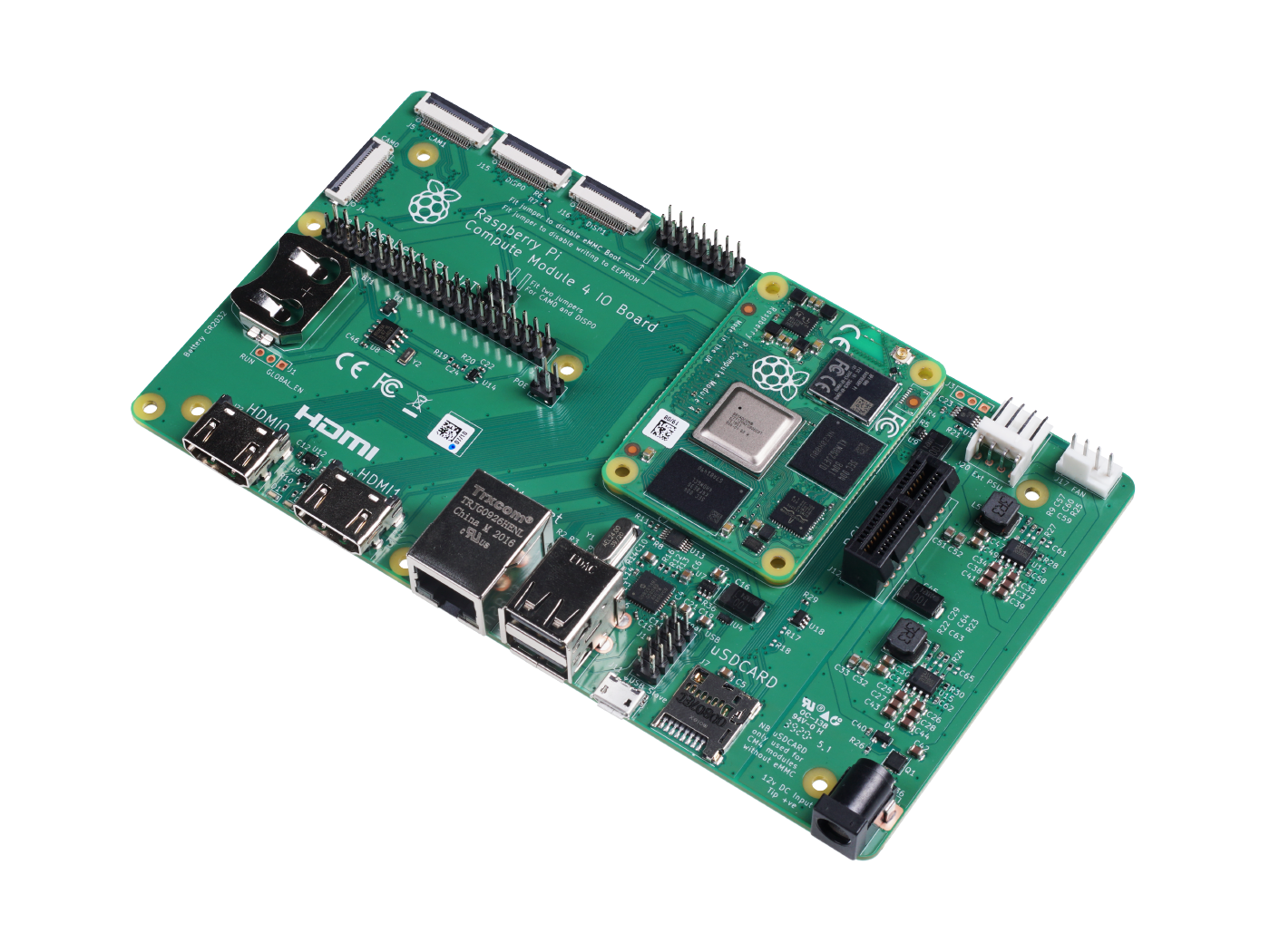

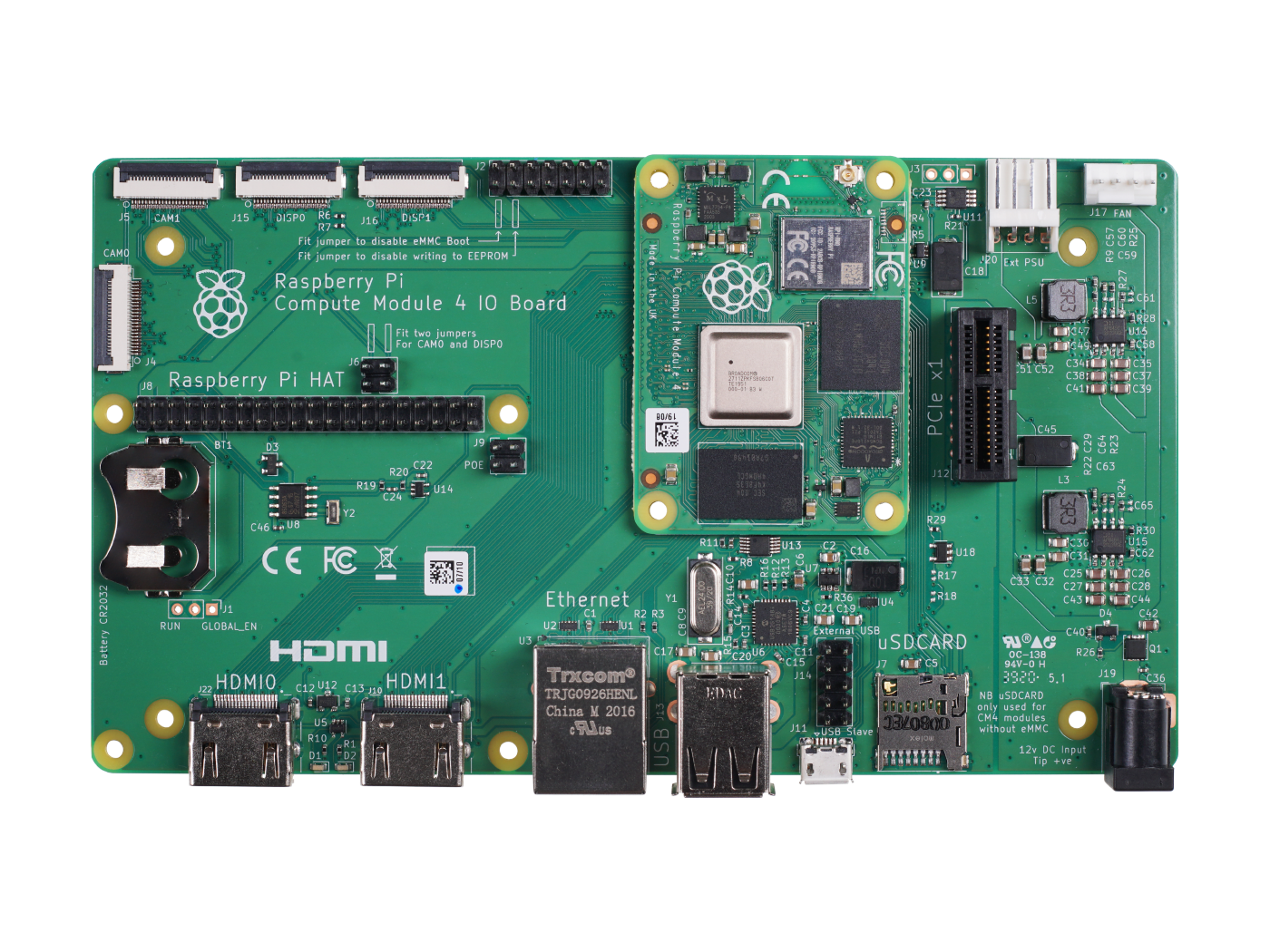

The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4. It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple.
Compute Module 4 IO Board also provides an excellent way to prototype systems using the Compute Module 4.
商品特點：
-
- Companion board for Raspberry Pi Compute Module 4
- Dual display support at resolutions up to 4K
- Hardware video decode at up to 4Kp60
- Dual camera interfaces
- PCIe Gen 2 x1 interface
商品規格：

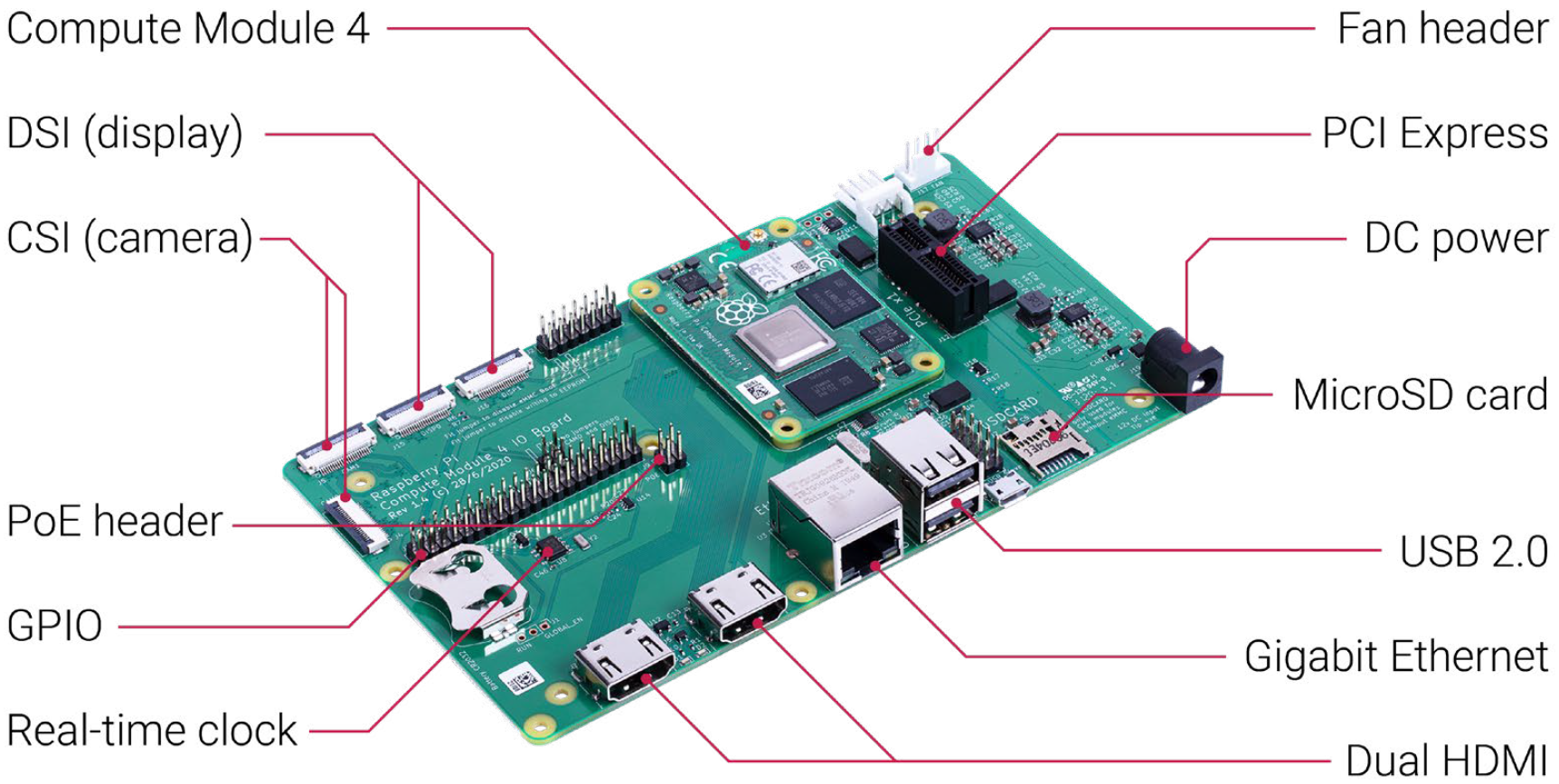

| Specification | Details |
|---|---|
| Socket | CM4 socket: suitable for all variants of Compute Module 4 |
| Connectors | Standard Raspberry Pi HAT connectors with PoE support |
| Standard PCIe Gen 2 x1 socket | |
| RTC | Real-time clock (RTC) with battery backup |
| Video | Dual HDMI connectors |
| Dual MIPI display connectors | |
| Camera | Dual MIPI camera connectors |
| Ethernet | Gigabit Ethernet socket supporting PoE HAT |
| USB | On-board USB 2.0 hub with 2 USB 2.0 connectors |
| SD Card | SD card socket for Compute Module 4 variants without eMMC |
| eMMC programming | Support for programming eMMC variants of Compute Module 4 |
| Fan Controller | PWM fan controller with tachometer feedback |
| Input Power | 12V input, +5V input with reduced functionality |

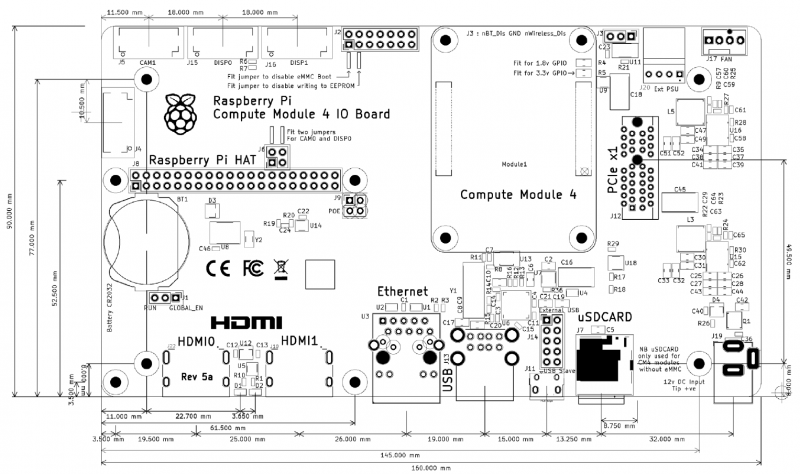

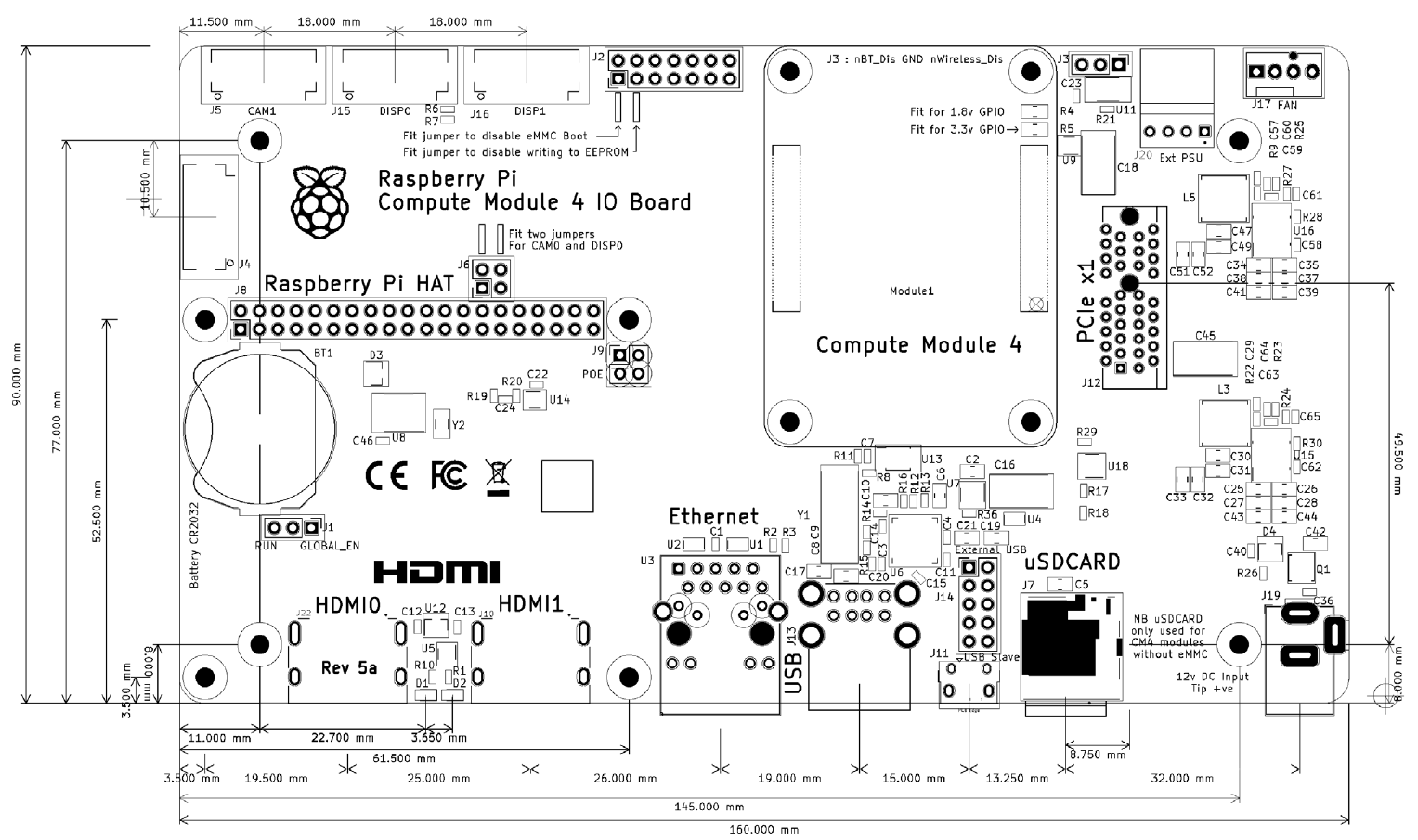

| Dimensions | 160 mm × 90 mm |
| Production lifetime | The Raspberry Pi Compute Module 4 IO Board will remain in production until at least January 2028 |
| Compliance | For a full list of local and regional product approvals, please visit: www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md |
商品內容：
1 x Raspberry Pi Compute Module 4 IO Board
