描述

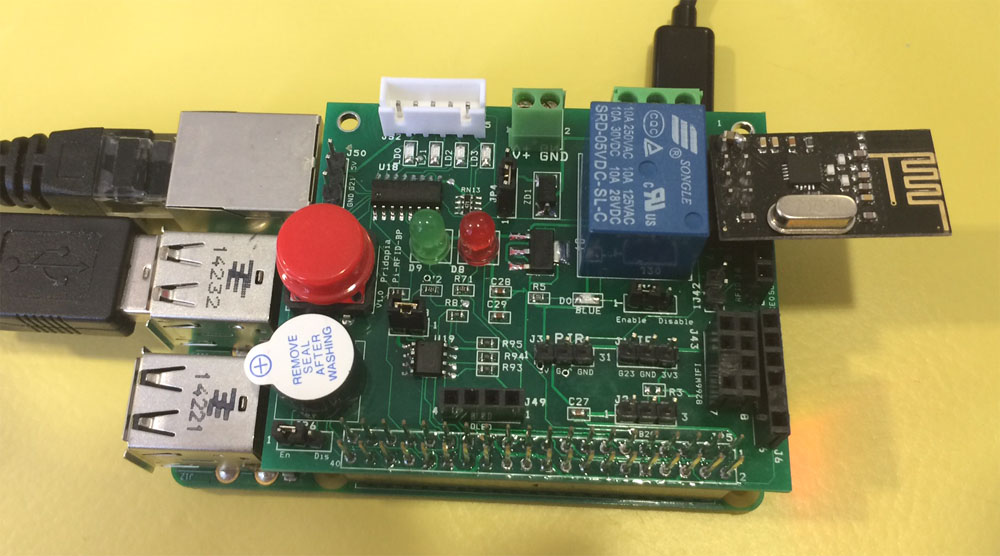

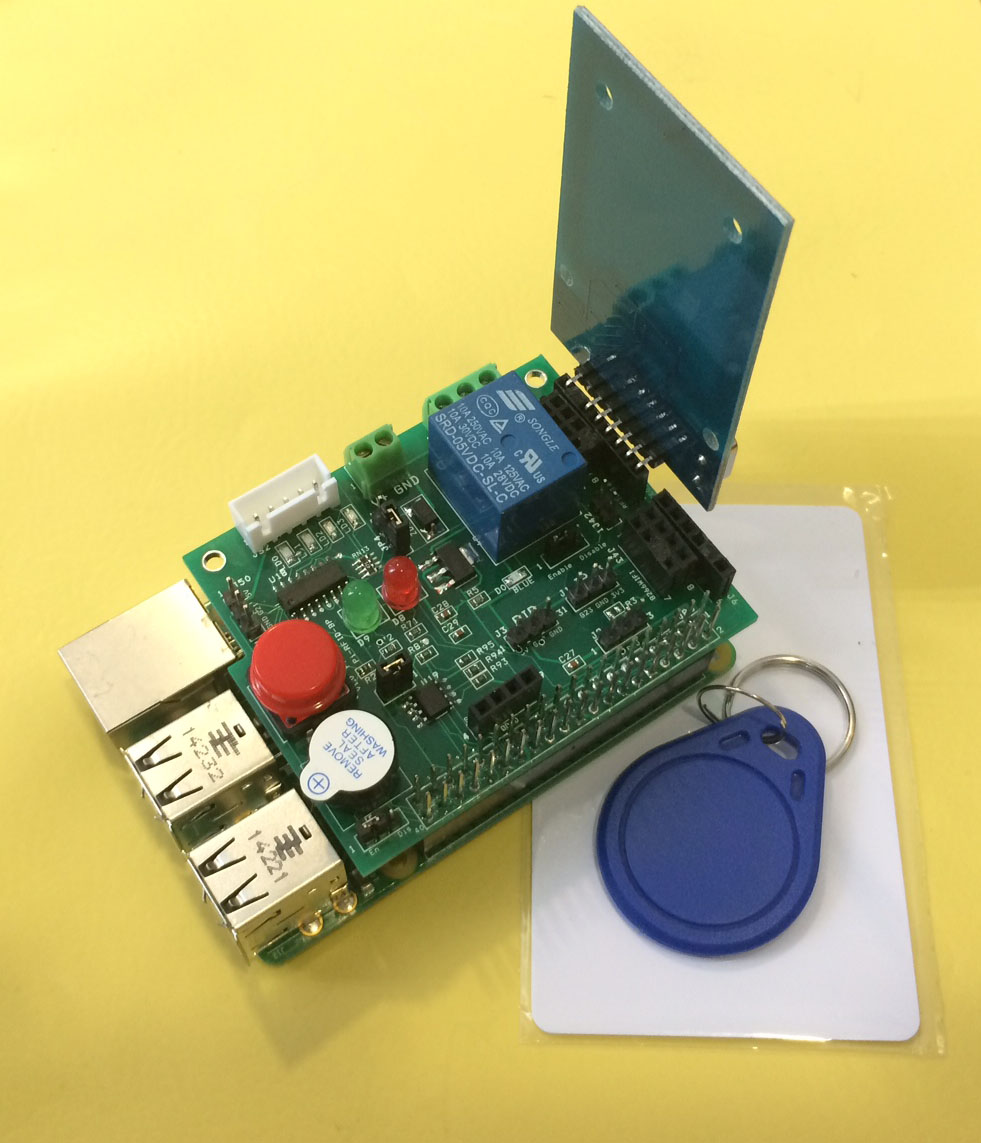

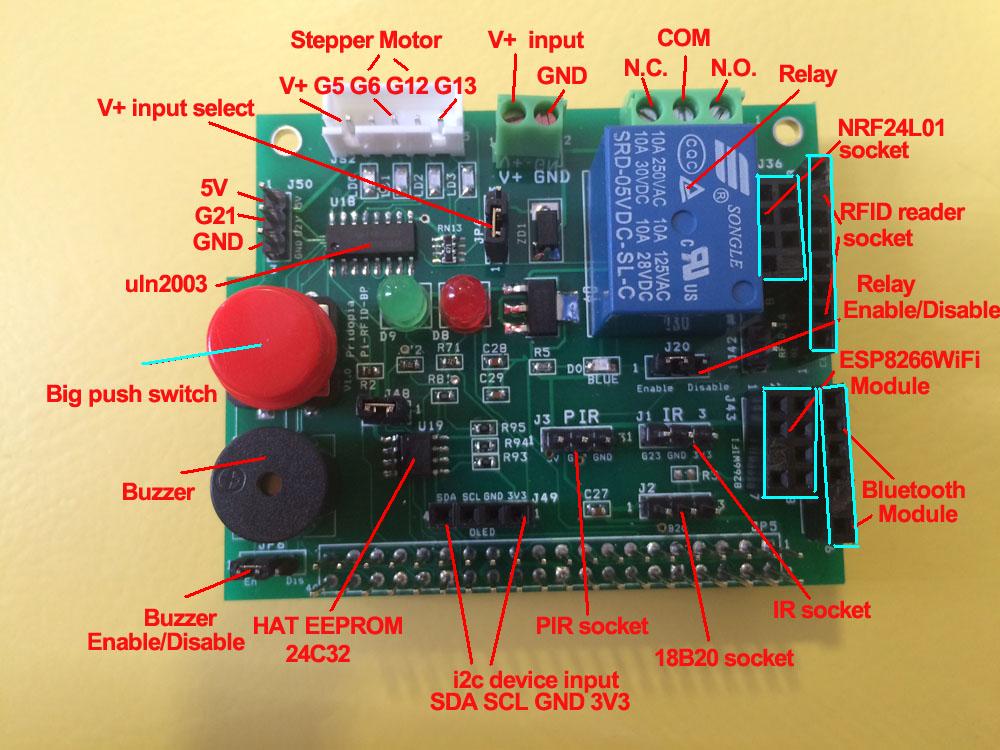

樹莓派Raspberry Pi RFID Reader & Relay 控制組＃3
商品特色：
- 1 x buzzer (GPIO18)
- 1 x Big Push Switch (GPIO27)
- 1 x Green LED (GPIO19)
- 1 x Red LED (GPIO24)
- 1 x RFID socket (SPI signal) / NRF24L01 socket (SPI signal), you can choose use RFID or NRF24L01 (both use SPI signal)
- 1 x extra I2C device input port, for 3.3V device
- 1 x DS18B20 temperature sensor socket (GPIO4)
- 1 x IR Receiver sensor socket (GPIO23)
- 1 x IR PIR motion sensor socket (GPIO22)
- 1 x Relay (GPIO17)

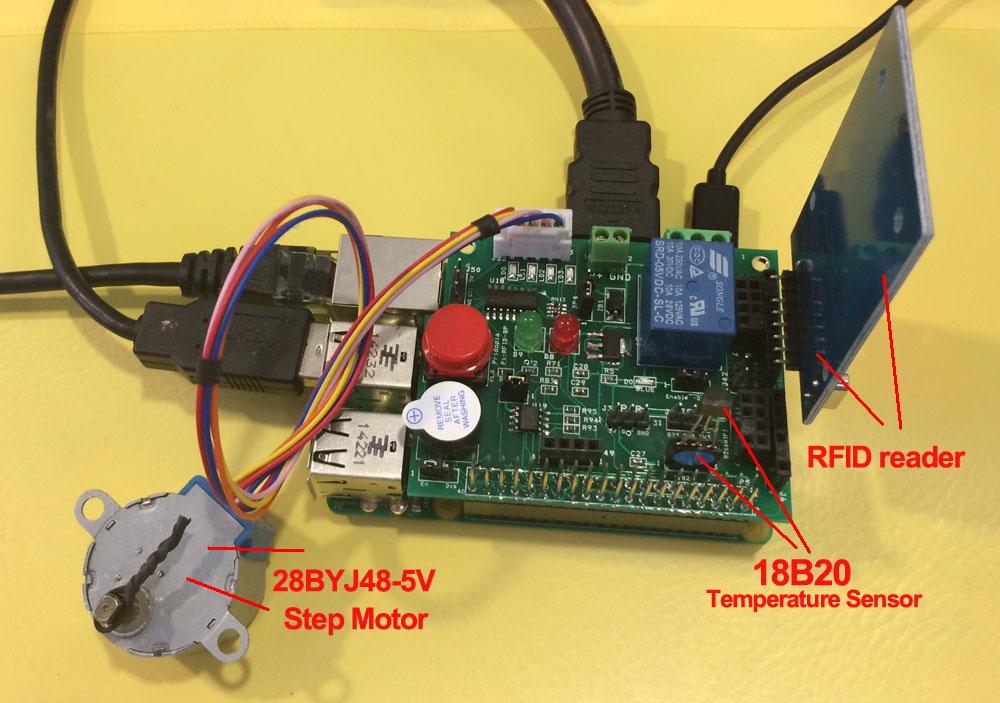

- 1 x step Motor (28byj48-5V) socket (GPIO 5,6,12,13)
- 1 x HAT EEPROM 24c32
- 1 x TXD, RXD Bluetooth module socket
- 1 x ESP8266 WifI module socket
相關資料：
支援 Pi_Scratch

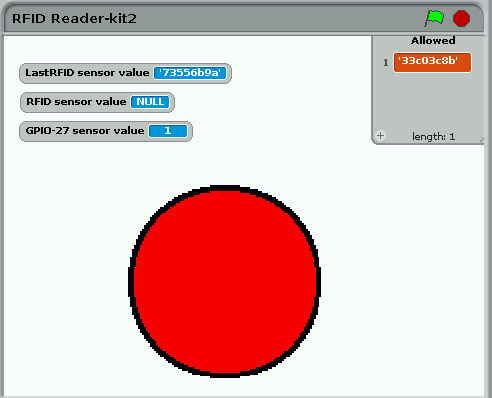

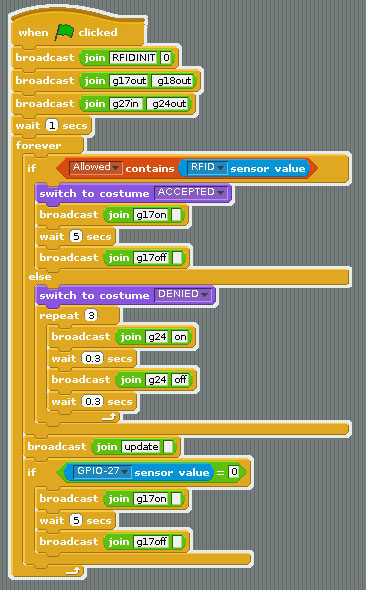

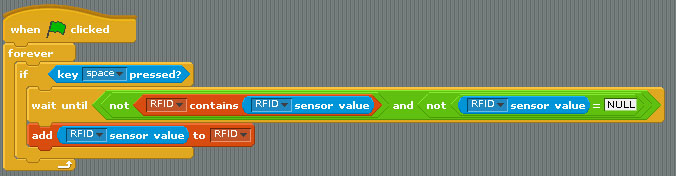

scratch demo file: RFID-Reader-kit2.sb RFIDdemo RFID Relay Program

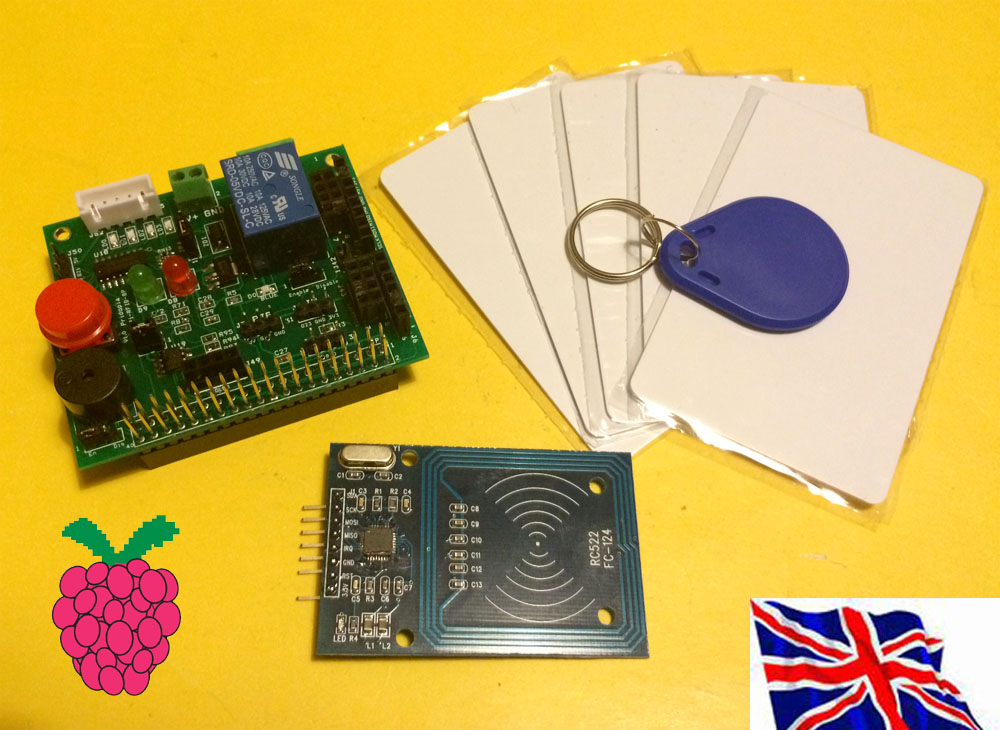

商品內容：
1x RFID Kit03 Board
1x Rs-Pi RFID Reader
1x Key Chains
5x S50 Fudan Card
1x Manual
