樹莓派Raspberry Pi全新7吋LCD觸控螢幕

NT$ 2,280 (含稅)

You Save: NT$ 520 (19%)

適用樹莓派 A+/B+/2B/3B/3B+/4B/5B

現貨供應，售價含稅，隨貨附發票

保固3個月

已售完

貨號: SC0025 分類: , 標籤: , , , , , , , , , , , , ,

描述

Print Friendly, PDF & Email

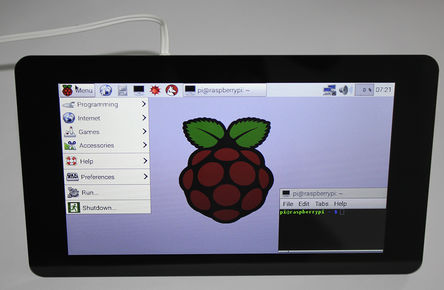

樹莓派Raspberry Pi全新7吋LCD觸控螢幕

Raspberry Pi LCD Touch Screen — 7 inch

The Raspberry Pi has it’s very own official LCD Touch Screen. A few years in the making, the Raspberry Pi Foundation wanted you to have the perfect display screen for your Pi without compromise.

Features & Benefits of the Pi LCD Touch Screen
• Multi-touch capacitive touch screen – supports up to 10 finger touches
• 7 inch display
• 800 x 480 pixel resolution at 60 frames per second (fps)
• 24-bit RGB colour
• 70° viewing angle
• Only two connections required
• Flexible power supply
• No electronic interference
• Full Raspbian OS functionality without a keyboard and mouse
• Kivy touch screen development software available – http://kivy.org/docs/installation/installation-rpi.html

LCD Touch Screen Contents

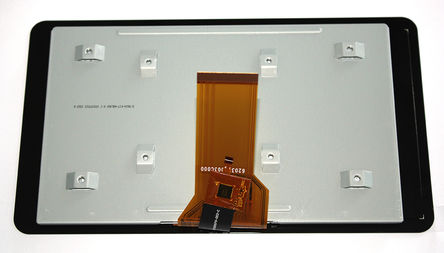

• LCD touch screen

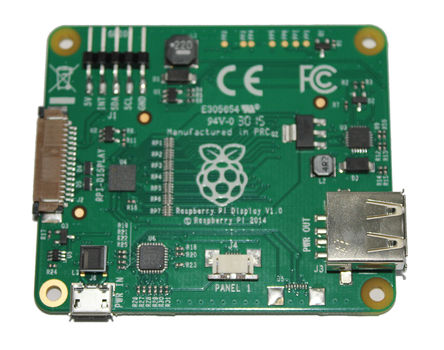

• Adapter board
• DSI ribbon cable
• 4 jumper wires
• Mounting hardware

Setting up your LCD Touch Screen

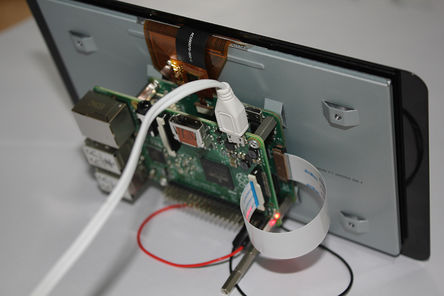

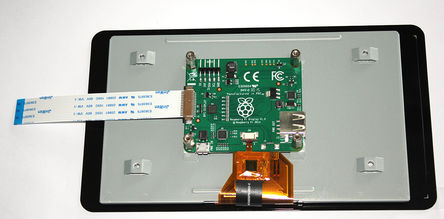

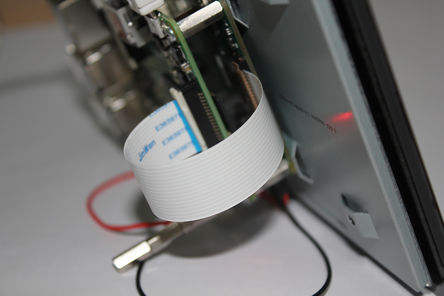

Set up is quick and easy. The adapter board and your Pi are mounted to the rear of the LCD using the basic fixings supplied; the DSI ribbon cable provides the display interface between the Pi and the LCD assembly.

Power Supply Options for your LCD Touch Screen
• Separate supply – Power the display board separately to the Pi using a uUSB power supply of least 500 mA
• Raspberry Pi 2A power supply – Connect a Pi power supply to the display board. The board can then power the Pi via USB connection
• GPIO jumpers – Power the display board from the Pi using the supplied jumper wires

Raspberry Pi official website reference：

https://www.raspberrypi.org/documentation/hardware/display/README.md

https://www.raspberrypi.org/documentation/hardware/display/troubleshooting.md

https://www.raspberrypi.org/blog/the-eagerly-awaited-raspberry-pi-display/

商品評價

目前沒有評價。

搶先評價 “樹莓派Raspberry Pi全新7吋LCD觸控螢幕”
Print Friendly, PDF & Email

微雪電子各型螢幕比較表-1

型號 影像 觸摸 聲音 支援主流設備
解析度 介面 面板 可視角度 類型 介面 面板 内建喇叭 訊號輸出 樹莓派 JETSON NANO 電腦
SPI螢幕
3.2inch RPi LCD (C) 320×240 高速SPI TFT – 電阻 SPI – × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° 電阻 SPI – × × √ × ×
3.5inch RPi LCD (C) 480×320 高速SPI TFT – 電阻 SPI – × × √ × ×
4inch RPi LCD (C) 480×320 高速SPI TFT – 電阻 SPI – × × √ × ×
DPI螢幕
7inch DPI LCD 1024×600 DPI IPS 170° – – – – – √ – –
DSI螢幕
7inch DSI LCD 800×480 DSI TFT – 電容 I2C 鋼化玻璃 – – √ – –
7inch DSI LCD (with cam) 800×480 DSI TFT – 電容 I2C 鋼化玻璃 – – √ – –
HDMI / TYPE-C螢幕
3.5inch HDMI LCD 480×320 HDMI IPS 160° 電阻 SPI – × √ √ × 僅顯示
4inch HDMI LCD 480×800 HDMI IPS 170° 電阻 SPI – × × √ × 僅顯示
4inch HDMI LCD (C) 720×720 HDMI IPS 170° 電容 Type-C / I2C 鋼化玻璃 – √ √ √ √
4inch HDMI LCD (H) 480×800 HDMI IPS 170° 電阻 SPI – × √ √ × 僅顯示
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° 電容 USB – × √ √ √ √
4.3inch DSI LCD 800×480 DSI IPS 160° 電容 I2C 鋼化玻璃 × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × √ × ×
5inch HDMI LCD 800×480 HDMI TFT – 電阻 SPI – × × √ × ×
5inch HDMI LCD (附外殼) 800×480 HDMI TFT – 電阻 SPI – × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – 電阻 USB – × × √ × √
5inch HDMI LCD (B) (附外殼) 800×480 HDMI TFT – 電阻 USB – × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – 電阻 USB – × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – 電容 USB 鋼化玻璃 × √ √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° 電容 USB 鋼化玻璃 × √ √ √ √
5.5inch HDMI AMOLED (附外殼) 1080×1920 HDMI AMOLED 170° 電容 USB 鋼化玻璃 × √ √ × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° 電阻 SPI – × × √ × 僅顯示
7inch HDMI LCD (B) 800×480 HDMI TFT – 電容 USB – × × √ × √
7inch HDMI LCD (B) (附外殼) 800×480 HDMI TFT – 電容 USB – × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° 電容 USB – × × √ × √
7inch HDMI LCD (C) (附外殼) 1024×600 HDMI IPS 170° 電容 USB – × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° 電容 USB – × √ √ √ √
7inch HDMI LCD (H) (附外殼) 1024×600 HDMI/VGA IPS 170° 電容 USB 鋼化玻璃 × √ √ √ √
7inch FHD Monitor 1080×1920 HDMI IPS 170° 電容 USB 鋼化玻璃 √ √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS(QLED) 170° 電容 USB 鋼化玻璃 – √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° 電容 USB 鋼化玻璃 × √ √ √ √
9inch 2560×1600 Monitor 2560×1600 HDMI IPS 178° 電容 USB 鋼化玻璃 √ √ √ √ √
10.1inch HDMI LCD 1024×600 HDMI IPS 170° 電阻 SPI – × × √ × 僅顯示
10.1inch HDMI LCD (B) (附外殼) 1280×800 HDMI IPS 170° 電容 USB 鋼化玻璃 × × √ × √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° 電容 USB 鋼化玻璃 × √ √ √ √
10.1inch HDMI LCD (G) (附外殼) 1920×1200 HDMI IPS 160° 電容 USB 鋼化玻璃 √ √ √ √ √
10.1inch HDMI LCD (H) (附外殼) 1024×600 HDMI/VGA TFT – 電容 USB – × × √ √ √
10.1HP-CAPQLED 1280×720 HDMI IPS(QLED) 170° 電容 USB 鋼化玻璃 – √ √ √ √
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° 電容 USB 鋼化玻璃 √ √ √ √ √
11.6inch HDMI LCD (H)(無外殼) 1920×1080 HDMI IPS 178° 電容 USB 鋼化玻璃 × √ √ √ √
11.6inch HDMI LCD (H) (附外殼) 1920×1080 HDMI/VGA IPS 178° 電容 USB 鋼化玻璃 √ √ √ √ √
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° 電容 Type-C / USB 鋼化玻璃 √ √ √ √ √
13.3inch HDMI LCD (H)(無外殼) 1920×1080 HDMI IPS 178° 電容 USB 鋼化玻璃 × √ √ √ √
13.3inch HDMI LCD (H) (附外殼) 1920×1080 HDMI/VGA IPS 178° 電容 USB 鋼化玻璃 √ √ √ √ √
13.3inch HDMI LCD (H) (附外殼) V2 1920×1080 HDMI/VGA IPS 178° 電容 USB 鋼化玻璃 √ √ √ √ √
15.6inch HDMI LCD(無外殼) 1920×1080 HDMI IPS 178° 電容 USB 鋼化玻璃 × √ √ √ √
15.6inch HDMI LCD (H) (附外殼) 1920×1080 HDMI/VGA IPS 178° 電容 USB 鋼化玻璃 √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° 電容 Type-C / USB 鋼化玻璃 √ √ √ √ √

SPI螢幕

  • 優點：售價低
  • 缺點：幀率低，僅適合低解析度，僅支援樹莓派，佔用樹莓派40pin GPIO介面（SPI），樹莓派系统兼容性差

DPI螢幕

  • 優點：售價低，幀率高，支援多種解析度，樹莓派系統相容性佳
  • 缺點：僅支援樹莓派，佔用樹莓派40pin GPIO介面

DSI螢幕

  • 優點：售價適中，幀率高，不佔用樹莓派40pin GPIO介面，樹莓派系統相容性佳
  • 缺點：僅支援樹莓派

HDMI / TYPE-C螢幕

  • 優點：幀率高，支援多種解析度，支援多種設備，不佔用樹莓派40pin GPIO介面，樹莓派系統相容性佳
  • 缺點：售價較高
Print Friendly, PDF & Email

微雪電子各型螢幕比較表-2

型號 類型 顯示顏色 解析度 顯示面積
(mm×mm)		 支援介面 驅動晶片 尺寸
(mm×mm)		 排針介面
0.91inch OLED Module OLED 白色 128×32 22.38×5.58 I2C SSD1306 36.0×12.5 PH2.0端子
0.95inch RGB OLED (A) OLED 65K彩色 96×64 20.14×13.42 4-wire SPI SSD1331 31.7×37.0 彎排針
0.95inch RGB OLED (B) OLED 65K彩色 96×64 20.14×13.42 4-wire SPI SSD1331 31.7×37.0 直排針
0.96inch LCD Module IPS 65K彩色 160×80 21.70×10.80 4-wire SPI ST7735S 32.5×26.0 PH2.0端子
0.96inch OLED (A) OLED 黄藍雙色塊* 128×64 21.70×11.20 3/4-wire SPI、I2C SSD1306 33.0×33.5 彎排針
0.96inch OLED (B) OLED 黄藍雙色塊* 128×64 21.70×11.20 3/4-wire SPI、I2C SSD1306 33.0×33.5 直排針
1.14inch LCD Module IPS 65K彩色 240×135 24.91×14.86 4–wire SPI ST7789 35.0×32.0 PH2.0端子
1.28inch LCD Module IPS 65K彩色 240×240 Φ32.4mm 4-wire SPI GC9A01 40.4×37.5
Φ37.5		 PH2.0端子
1.3inch LCD Module IPS 65K彩色 240×240 23.40×23.40 4-wire SPI ST7789 45.0×31.0 PH2.0端子
1.3inch OLED (A) OLED 藍色 128×64 29.42×14.70 3/4-wire SPI、I2C SH1106 40.5×37.5 彎排針
1.3inch OLED (B) OLED 藍色 128×64 29.42×14.70 3/4-wire SPI、I2C SH1106 40.5×37.5 直排針
1.3inch OLED Module (C) OLED 白色 64×128 14.70×29.42 4-wire SPI、I2C SH1107 30.0×39.5 PH2.0端子
1.47inch LCD Module LCD 262K彩色 172×320 17.39×32.35 4-wire SPI ST7789V3 22.0×38.5 PH2.0端子
1.5inch OLED Module OLED 白色(16灰度) 128×128 26.86×26.86 4-wire SPI、I2C SSD1327 44.5×37.0 PH2.0端子
1.5inch RGB OLED Module OLED 65K彩色 128×128 26.86×26.86 3/4-wire SPI SSD1351 44.5×37.0 PH2.0端子
1.54inch LCD Module IPS 65K彩色 240×240 27.72×27.72 4–wire SPI ST7789 50.0×35.0 PH2.0端子
1.8inch LCD Module TFT 65K彩色 128×160 28.30×34.50 4-wire SPI ST7735S 56.5×34.0 PH2.0端子
2inch LCD Module IPS 262K彩色 240×320 30.60×40.80 4-wire SPI ST7789 58.0×35.0 PH2.0端子
2.4inch LCD Module TFT 65K彩色 240×320 36.72×48.96 4-wire SPI ILI9341 70.5×43.3 PH2.0端子
