描述

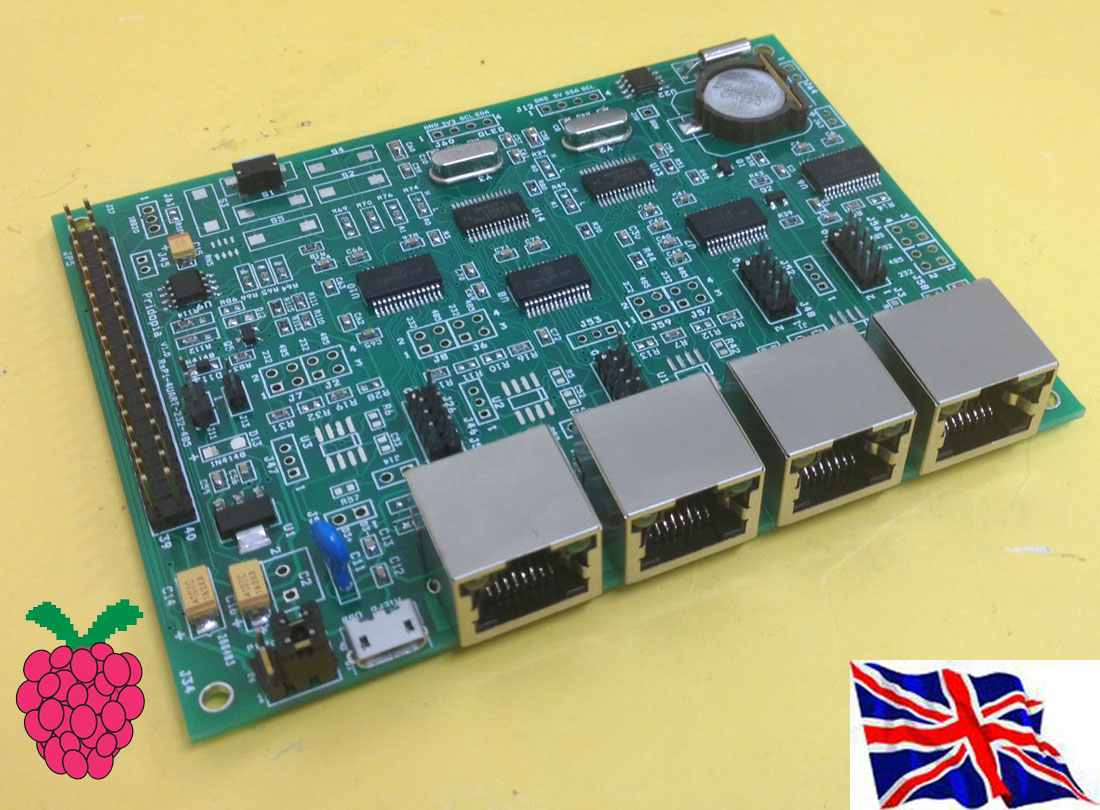

樹莓派 Raspberry Pi RS232 擴充板(4埠, DB9 & RJ45, UART)
商品規格

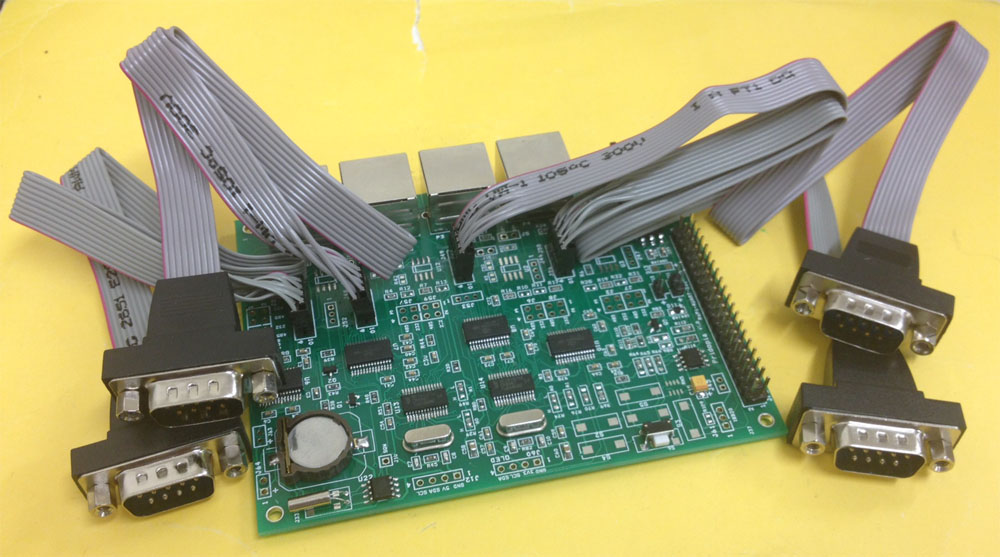

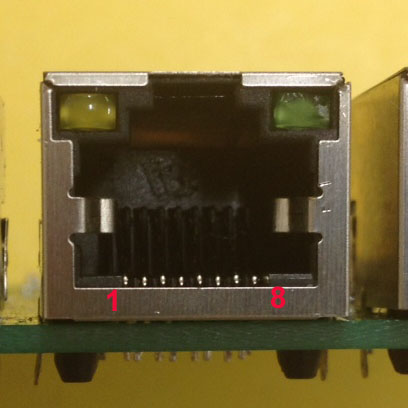

1. Provide RS232 x4 DB9 or RJ45 output
2. Can Choose RS232 x2 & RS485 X2 (option)
3. On board DS18B20 1Wire Temperature sensor (Option)
4. Provide 8 GPIO control LED
5. 1 GPIO 5V Mini Fan control pin ( 2.0mm / 2.54mm pitch )
6. On board RTC function with CR1220 Battery socket

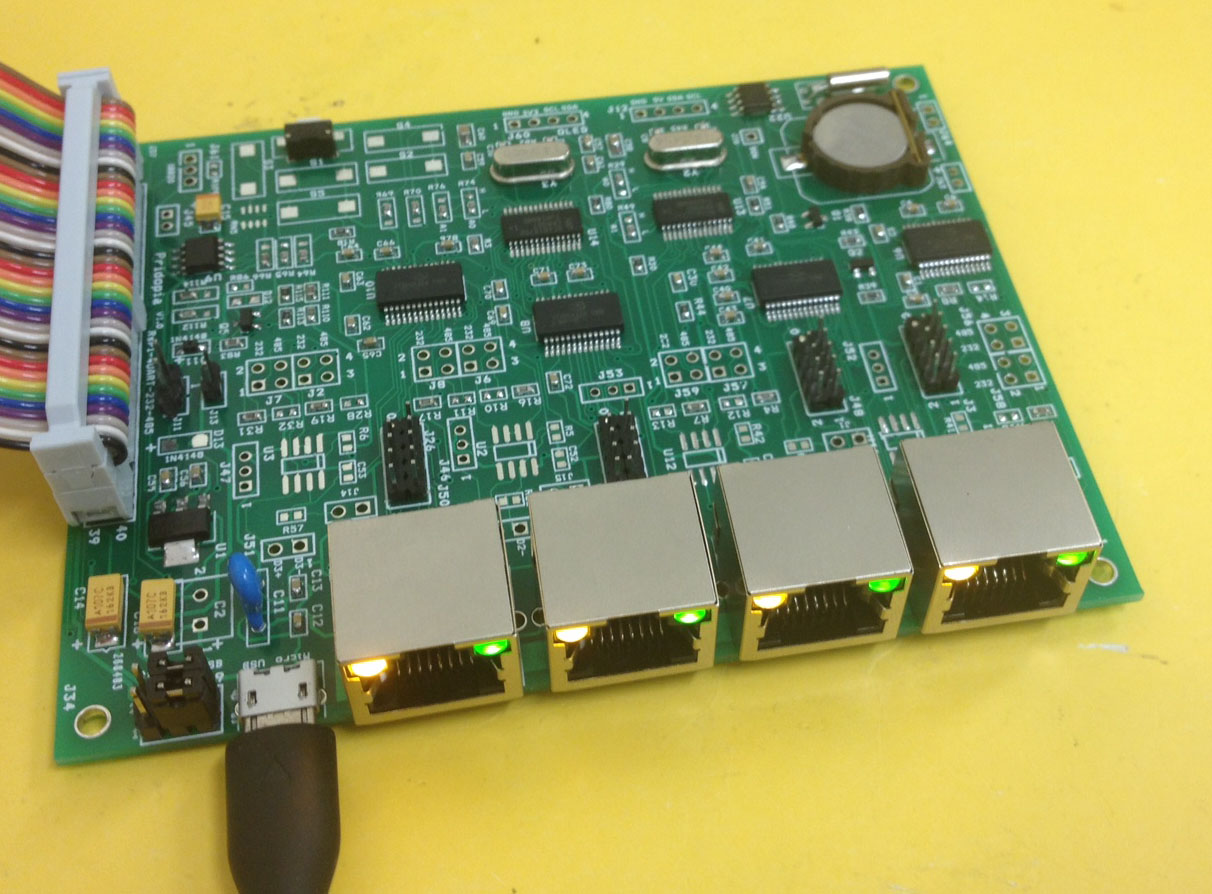

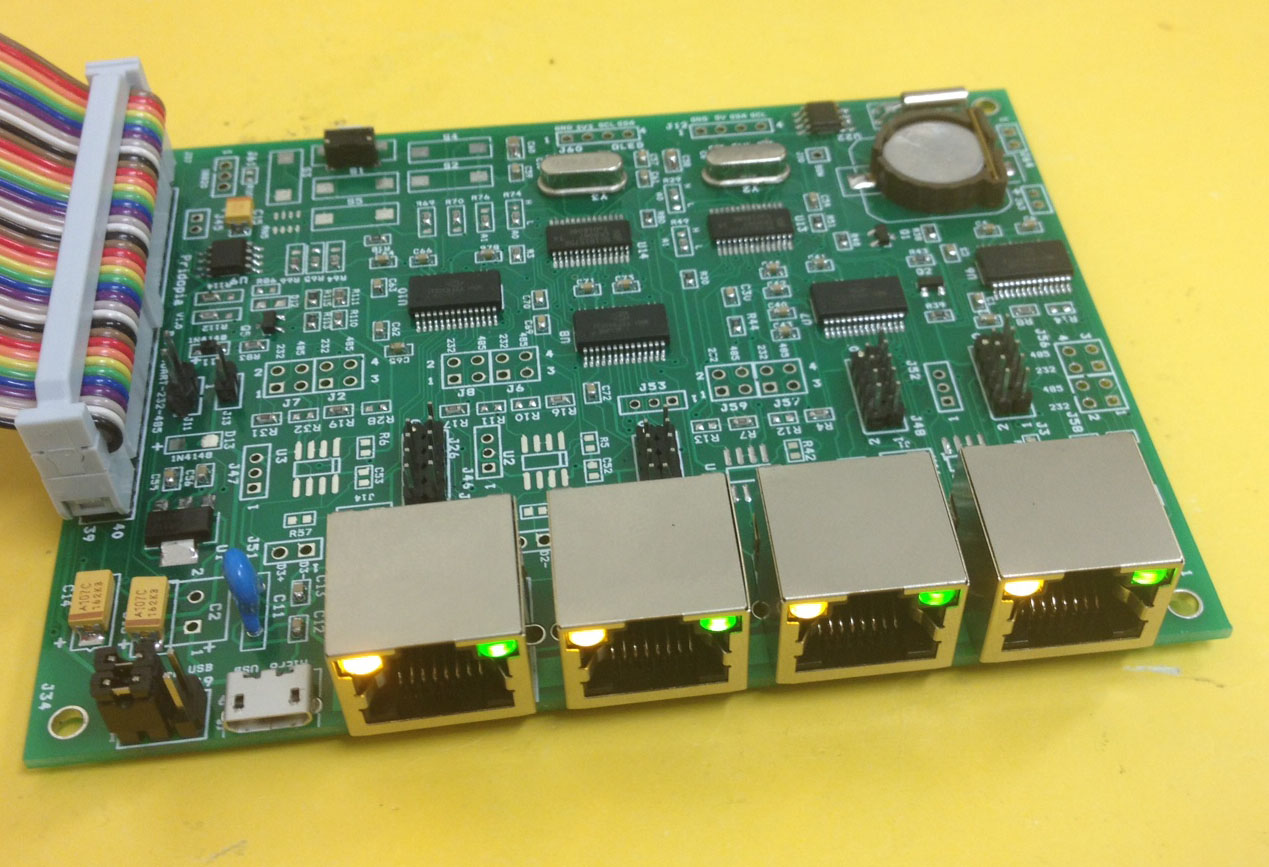

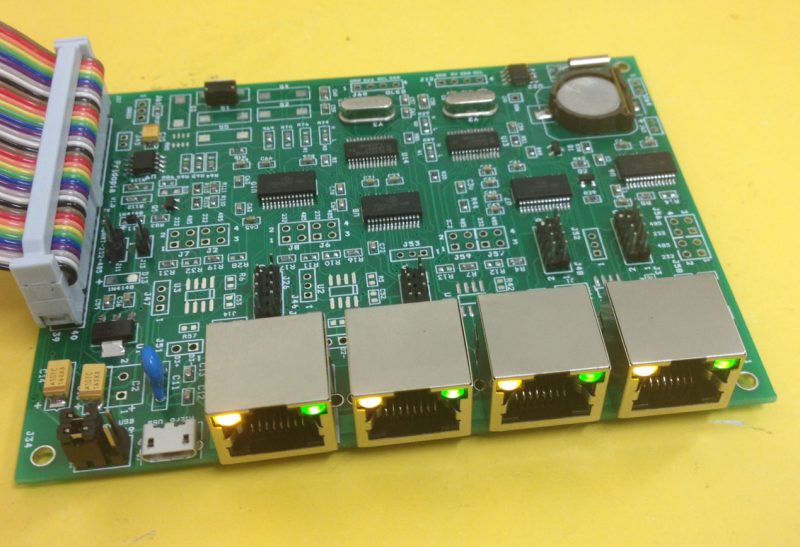

7. 4 x RS232 Board Power select jumper from Pi or Micro USB
8. 5V Mini Fan Power select jumper from Pi or Micro USB
9. Provide an individual 3.3V power for UART Board
10. Provide HAT EEPROM for future driver program update.
11. One software control Micro Switch for Program ( Shut Down , reboot….)
12. Use 20×2 40pin cable connect to Pi

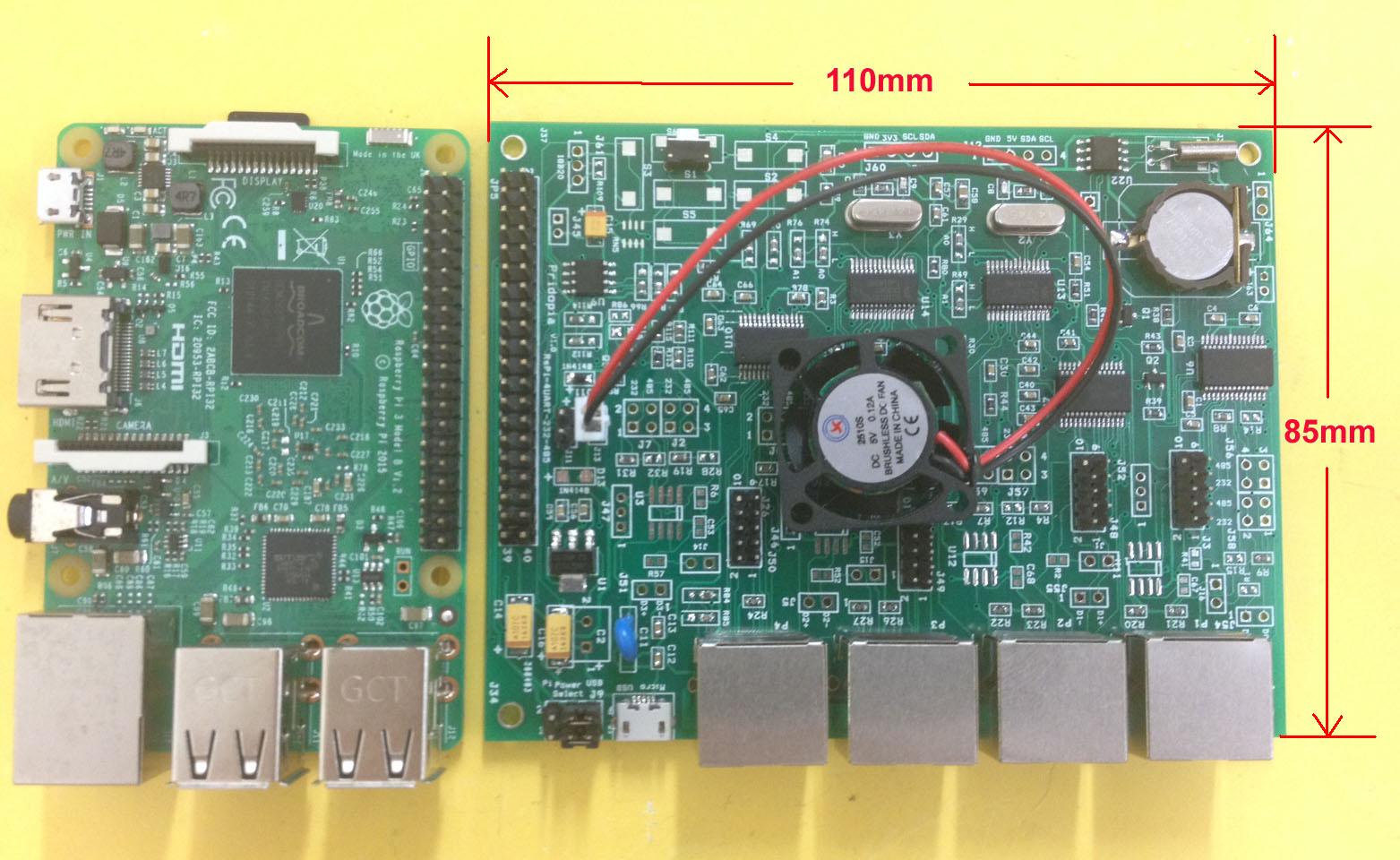

13. PCB size 110mm x 85mm
14. Raspberry Pi model 3B & Pi Zero W still can use on board Bluetooth & WiFi

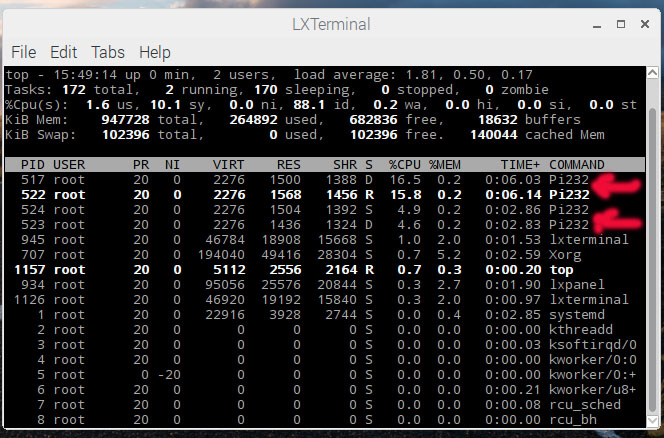

15. Provide Serial GUI Control Panel– Control up to 4 Serial Ports
16. Provide command line mode to activate serial ports through terminal/ssh.
相關文件
Software Pack
商品內容
-
- 1x Rs-Pi RS232 x4 Add-On board
- 1x Manual
