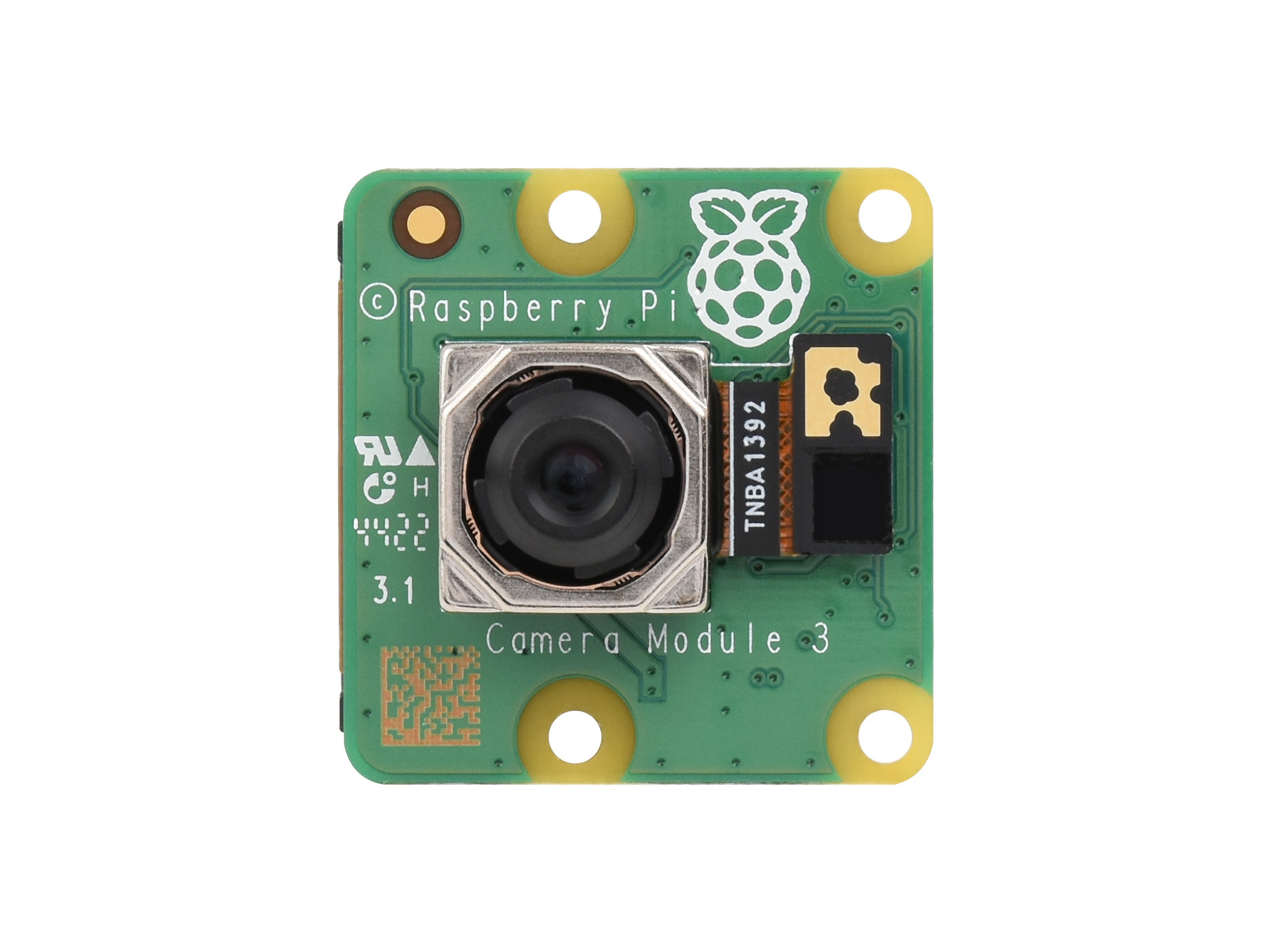

• • Back-illuminated, stacked CMOS 12-megapixel Sony IMX708 image sensor
  • High signal-to-noise ratio (SNR)
  • Built-in 2D Dynamic Defect Pixel Correction (DPC)
  • Phase Detection Autofocus (PDAF) for rapid autofocus
  • QBC Re-mosaic function
  • HDR mode (up to 3 megapixel output)
  • CSI-2 serial data output
  • 2-wire serial communication (supports I2C fast mode and fast mode plus)
  • 2-wire serial control of focus mechanism
  • Resolution: 11.9 megapixels
  • Sensor size: 7.4mm sensor diagonal
  • Pixel size: 1.4μm × 1.4μm
  • Horizontal/vertical: 4608 × 2592 pixels
  • Diagonal field of view: 75 degrees (Camera Module 3, Camera Module 3 NoIR), 120 degrees (Camera Module 3 Wide, Camera Module 3 NoIR Wide)
  • Common video modes: 1080p50, 720p100, 480p120
  • Output: RAW10
  • IR cut filter: Integrated in standard variants; not present in NoIR variants

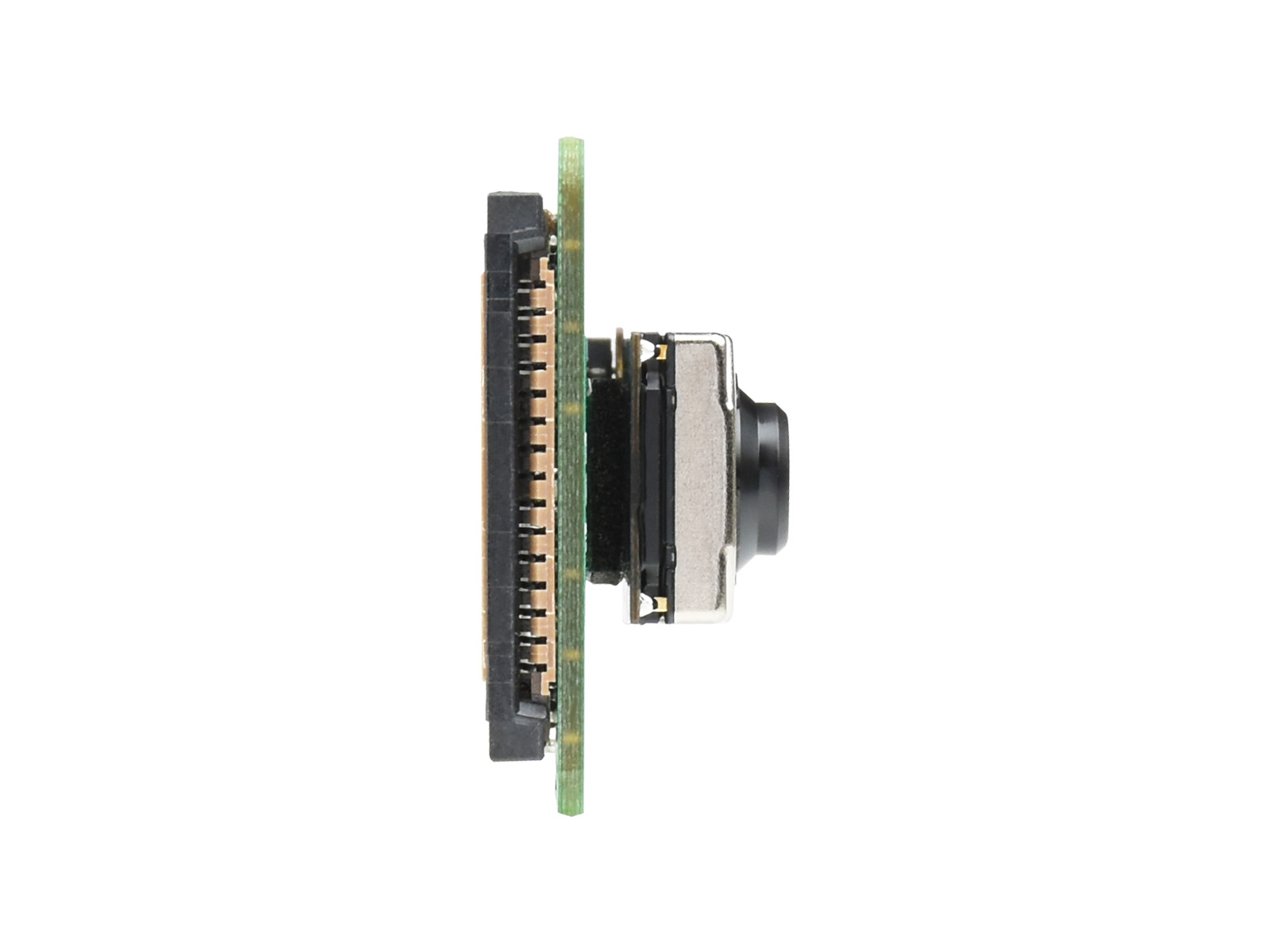

  • Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)

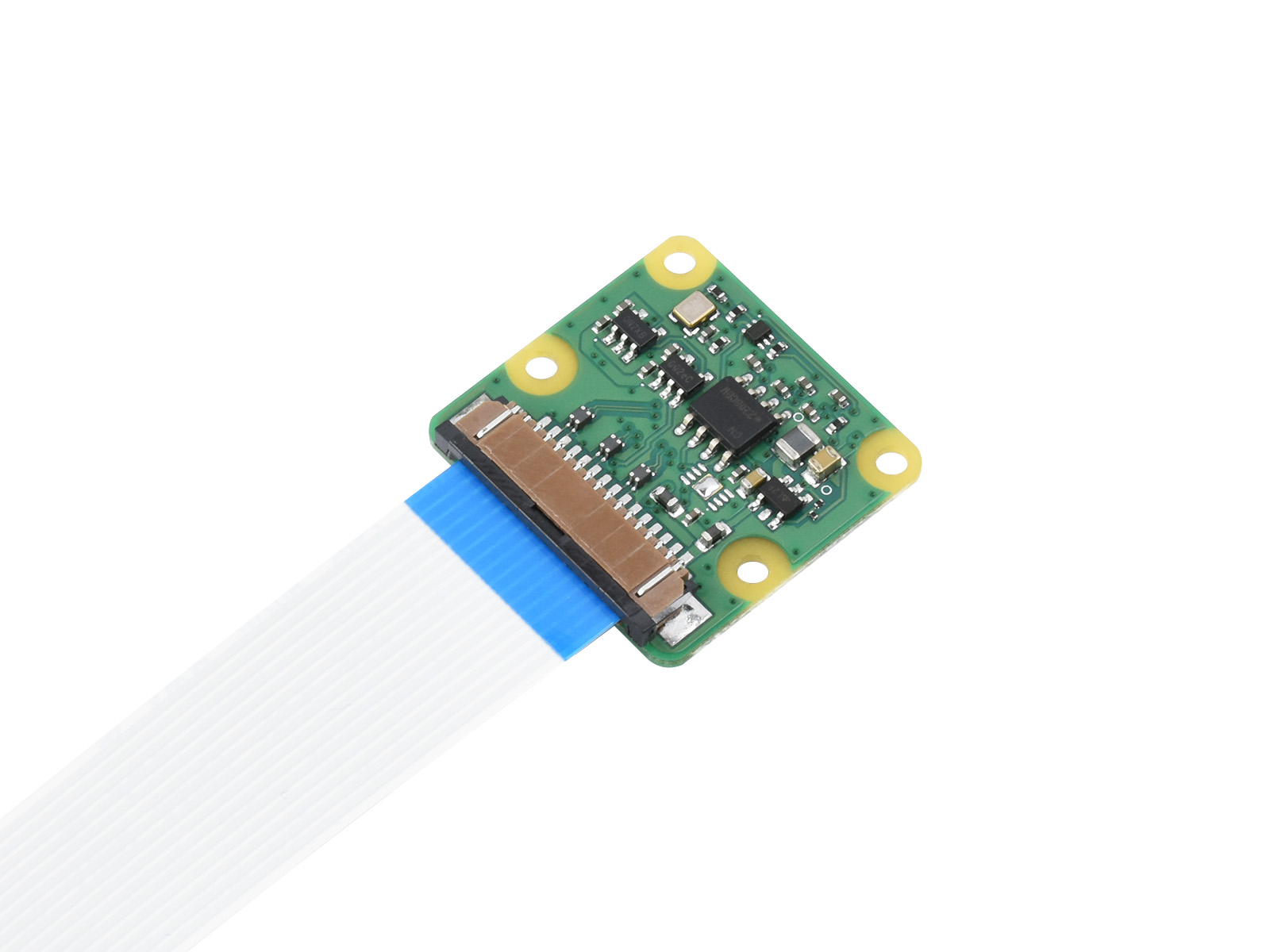

  • Ribbon cable length: 200mm
  • Cable connector: 15 × 1mm FPC

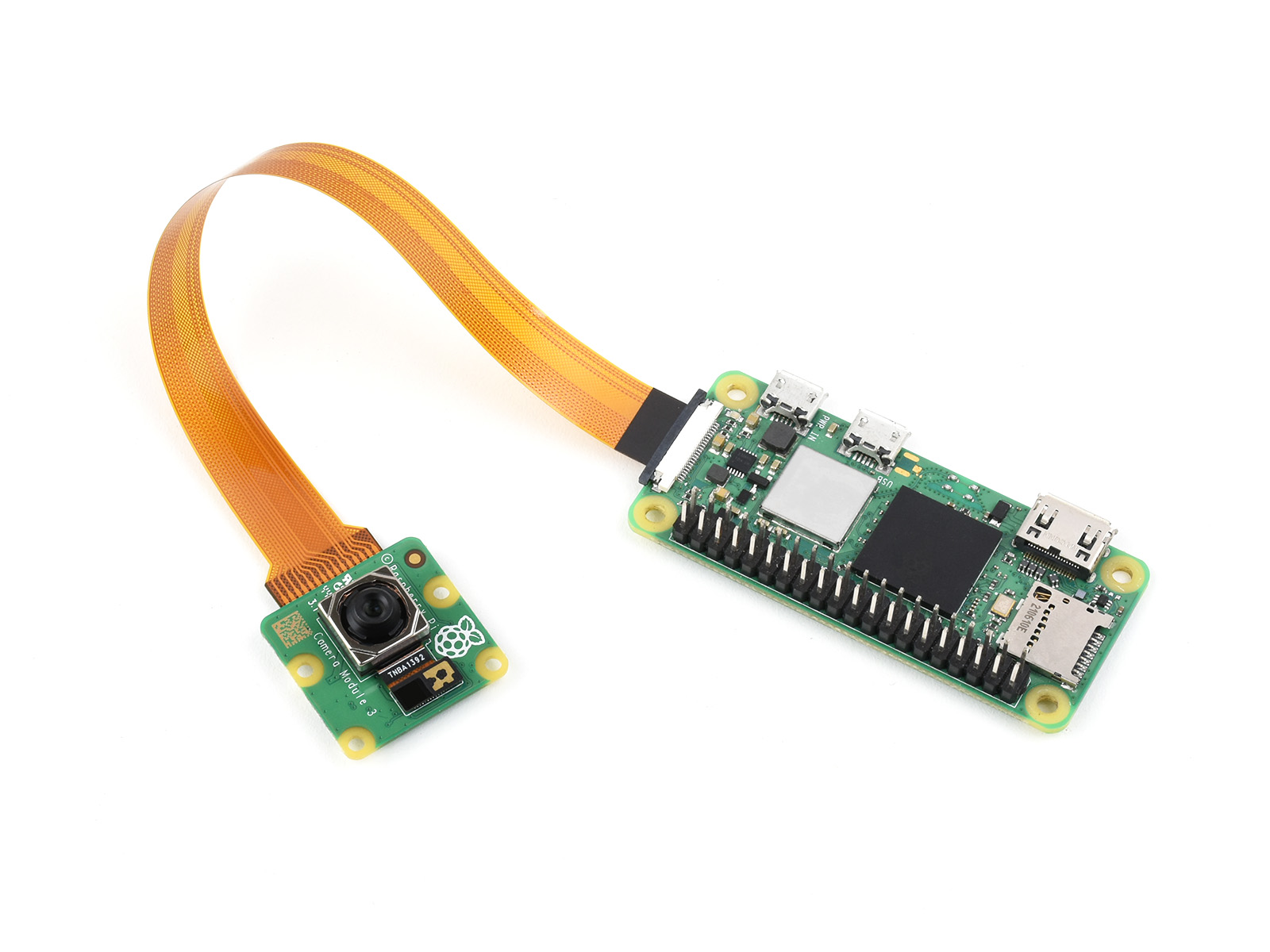

All models of Raspberry Pi Zero require a Raspberry Pi Zero camera cable to connect to the Raspberry Pi Camera Module; the standard cable supplied with the camera is not compatible with the smaller Raspberry Pi Zero camera connector.

Raspberry Pi Camera Module 3 has undergone extensive compliance testing and meets a number of regional and international standards.

View and download relevant certificates and conformity documents.
If you require any further information regarding compliance, please contact us at compliance@raspberrypi.com.
