樹莓派夜視攝影鏡頭模組(5MP)+魚眼鏡頭(160度）

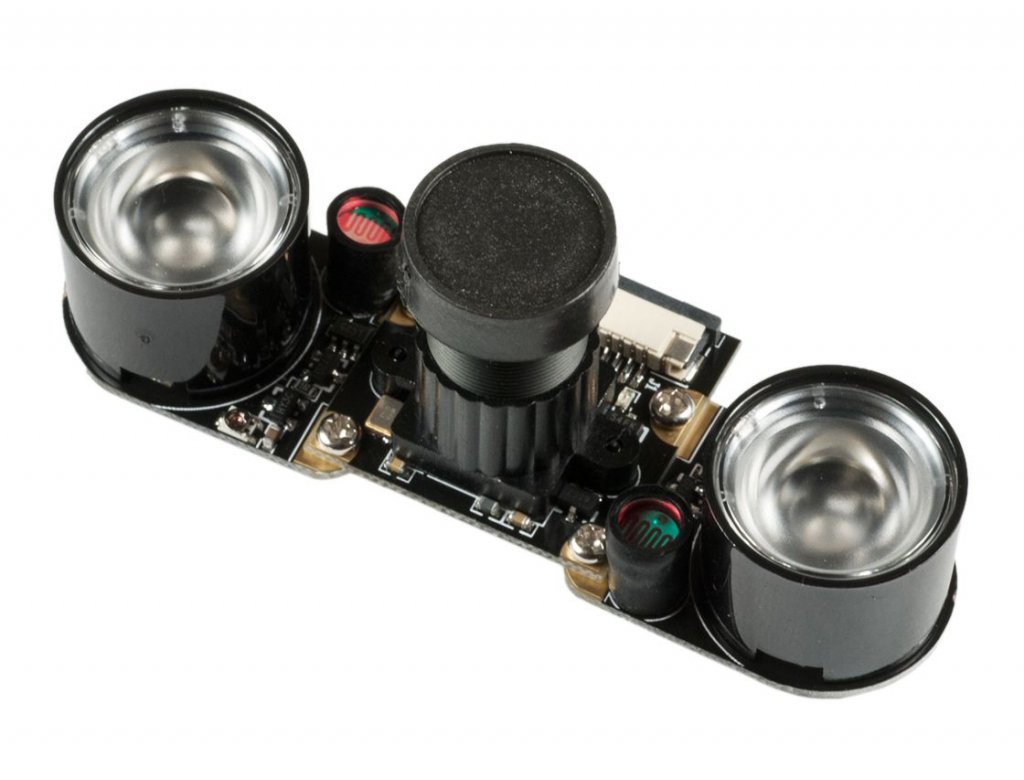

Our Raspberry Pi Night Vision Camera plugs directly into the CSI connector on the Raspberry Pi, and features two high intensity Infrared LED spotlights for night time recording! The IR LED’s are powered directly from the CSI port, and are capable of lighting an area at a distance of up to 8m! In testing, the best images were captured at a distance of 3m to 5m. The camera also features an adjustable focal length and 160 degree viewing angle lens.

This Raspberry Pi night vision camera uses the same OV5647 as the standard Raspberry Pi camera, and is therefore able to deliver a crystal clear 5MP resolution image, or 1080p HD video recording at 30fps!

Features:

• Raspberry Pi Night Vision Camera. Compatible with all revisions of the Raspberry Pi
• 5 Megapixel OV5647 Camera
• 2 x 3W high-power 850 infrared LEDs:
  • Onboard photo resistor to detect ambient light
  • Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 2.35
  • Focal Length : Adjustable
  • Field of View : 160 degree (while other normal cameras are typically 72 degree)
    • Diagonal angle : 160 degree
    • Horizontal angle : 120 degree
  • Sensor best resolution : 1080p
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED
• Dimension: 25mm x 24mm

商品內容：

1. 1. RPi Camera (H) × 1
   2. Infrared LED Board (B) × 2
   3. 15PIN FFC (反向) × 1
