描述

樹莓派多功能自動控制教學擴充板-V1

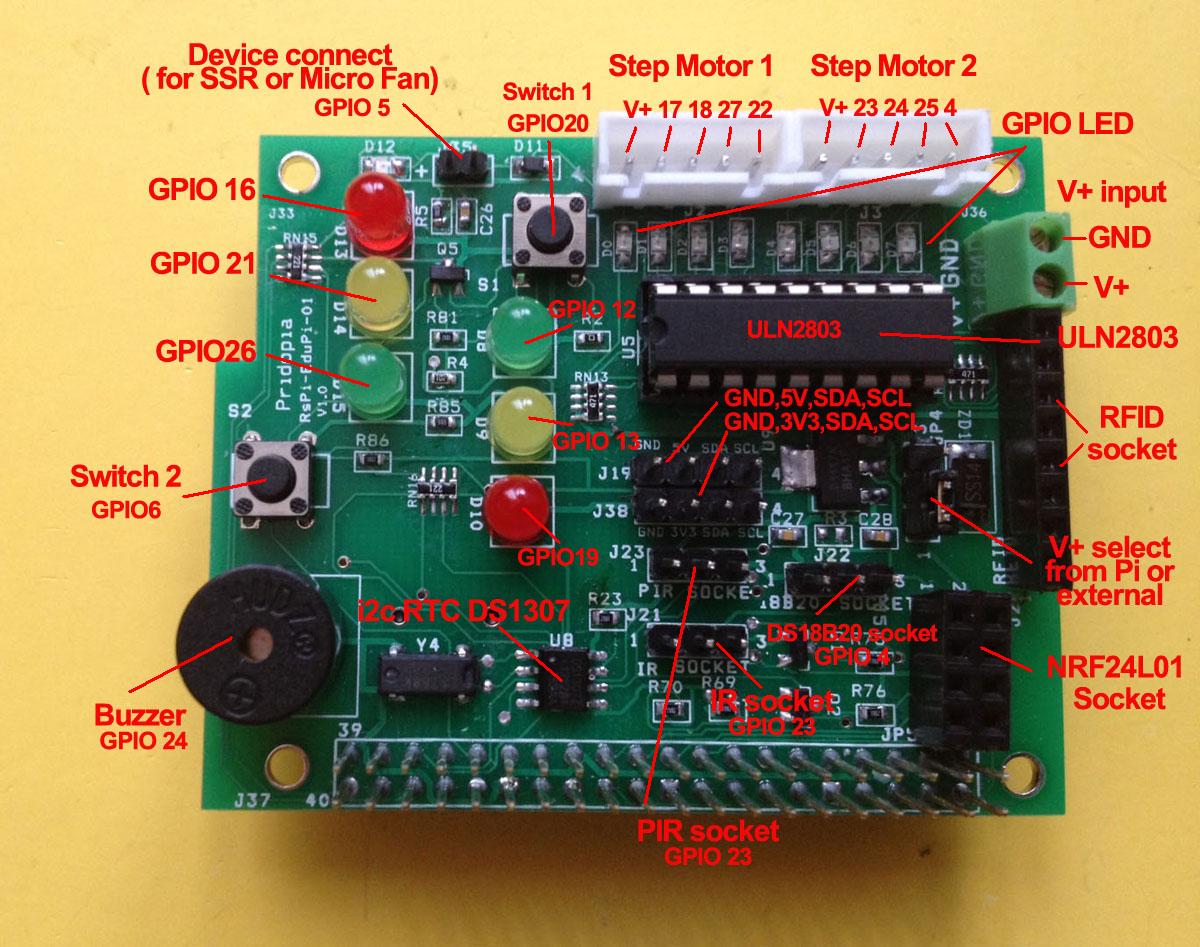

1. Provide RTC clock with CR1220 3V Backup Battery.

2. Provide 2 switches control 2 sets traffic light (python program available).

3. Provide RFID & NRF24L01 socket ( both use SPI signal)

4. Provide 2 extra I2C devices input port：one for 3.3V, the other one for 5V (with Logic Level converter)

5. Provide 3.3V power regulator for 3.3V device ( RFID/ NRF24L01) I2C device

6. Provide DS18B20 temperature sensor socket (GPIO 4)

7. Provide IR receiver sensor socket (GPIO 23)

8. Provide IR PIR motion sensor socket (GPIO 23)

9. Provide 2 x 5V 28BYJ-48 step motor socket (5V can select from Pi or external)

(GPIO 17,18,27,22) step motor 1,

(GPIO 23,24,25,4) step motor 2

10. Provide 1 buzzer (GPIO 24)

11. Provide 2 sets traffic light

First set ：Red (GPIO 19), Yellow(GPIO 13), Green (GPIO 12) ,Switch 1(GPIO 20)

Second set ： Red (GPIO 16), Yellow(GPIO 21), Green (GPIO 26) ,Switch 2(GPIO 6)

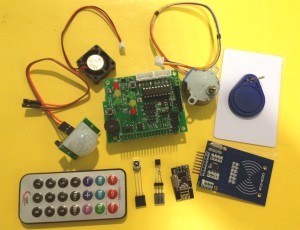

配件包內容：(另購)

1. DS18B20 Temperature sensor x1

2. NRF24L01 Transceiver x1

3. RFID Reader Kits ( 1x Rs-Pi RFID Reader, 1x S50 Fudan Card , 1x Key Chains )

4. IR remote control x1

5. IR Receiver Sensor x1

6. 5V 28BYJ-48 Step Motor x1

7. DC 5V Micro Fan x1

8. IR PIR Motion Sensor x1

商品內容

1x Rs-Pi Edu Learning  Board(樹莓派多功能自動控制教學擴充板-V1)

1x manual
