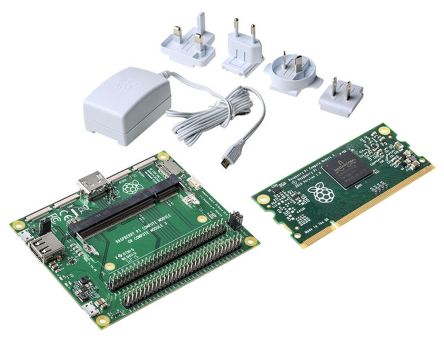

Raspberry Pi Compute Module 3 Development Kit

The Compute Module 3 Development Kit is for designers who like the Raspberry Pi 3 functionality but need a smaller form factor for their embedded designs.

Raspberry Pi Compute module 3
Like Pi 3:
•BCM2837 processor
•Quad-core Cortex A53 with dedicated 512 Kbyte L2 cache
•1 Gbyte LPDDR2 RAM
Additionally:
•Smaller form factor
•48x GPIO pins

Raspberry Pi 3 compute module I/O
•Suitable for the development of Compute Module 3 or Compute Module 3 Lite
•SD card socket to support the Compute Module 3 Lite

Official White Raspberry Pi Power Supply
• 2.5 A 5.1 V power supply
• 1.5 m cable
• Short circuit, overcurrent and over-voltage protection
• Low standby current consumption
• Class II double insulated

Note

Raspberry Pi guarantee the availability of CM3 and CM3 Lite until at least January 2023.

The supplied power supply is for Pi 3 use only.
