描述

樹莓派多功能自動控制教學擴充板 – V2E01

1. Provide RTC clock with CR1220 3V Backup Battery.

2. Provide 2 switches control 2 sets traffic light (python program available).

3. Provide RFID & NRF24L01 socket ( both use SPI signal)

4. Provide 2 extra I2C devices input port：one for 3.3V, the other one for 5V (with Logic Level converter)

5. Provide 3.3V power regulator for 3.3V device ( RFID/ NRF24L01) I2C device

6. Provide DS18B20 temperature sensor socket (GPIO 4)

7. Provide IR receiver sensor socket (GPIO 23)

8. Provide IR PIR motion sensor socket (GPIO 23)

9. Provide 1 x 5V 28BYJ-48 step motor socket (5V can select from Pi or external)

(GPIO 17,18,27,22) step motor 1,

10. Provide 1 buzzer (GPIO 24)

11. Provide 2 sets traffic light

First set ：Red (GPIO 19), Yellow(GPIO 13), Green (GPIO 12) ,Switch 1(GPIO 20)

Second set ： Red (GPIO 16), Yellow(GPIO 21), Green (GPIO 26) ,Switch 2(GPIO 6)

Below are the new functions we added in V2

12. 2 x R,Y,G LED display stand set

13. 2 x Servo motor socket

14. HAT EEPROM 24c32 support on board

15. 1 x DHT22 Temperature & Humidity sensor socket

16. HY-SRF05 Ultrasonic distance sensor socket

17. 16×2/20×4 character LCD socket

18. 84×48 Pixels Monochrome LCD socket



Advance user   ——–   in AT command mode

• ESP8266 Serial WiFi module socket        Spec  AT command   Datasheet    AT Example
• Bluetooth 2.0 module socket         AT command  Datasheet
• Bluetooth 4.0 BLE        AT command  Datasheet

配件包E01-M01：(另購)

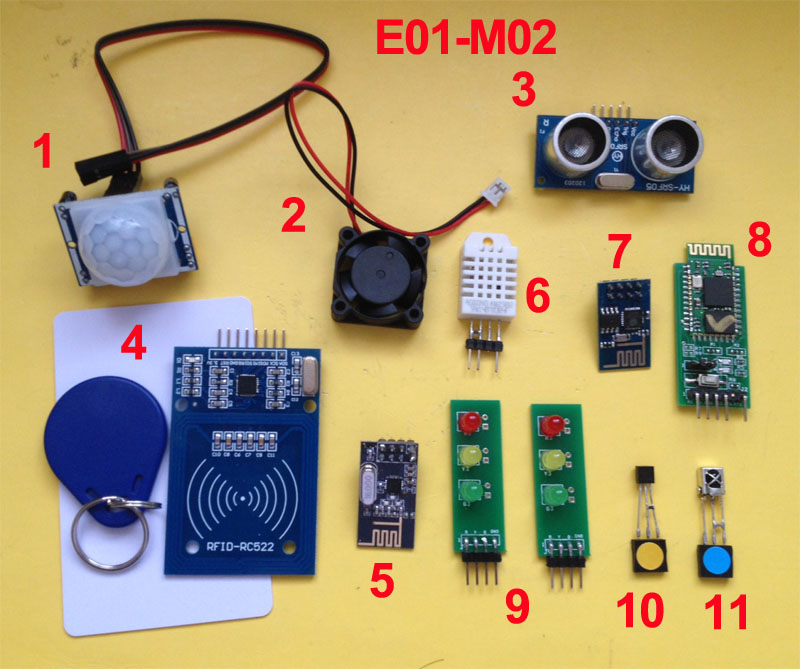

配件包E01-M02：(另購)

配件包E01-M03：(另購)

相關文件

Pridopia Pi-Scratch driver software

Demo Python program, EDU-Pack-v2.7z

Minimum Requirements – a Raspberry Pi with Raspbian (wheezy) installed ,

商品內容

1x Rs-Pi Edu Learning  Board(樹莓派多功能自動控制學習擴充板)-V2E01

1x Manual
