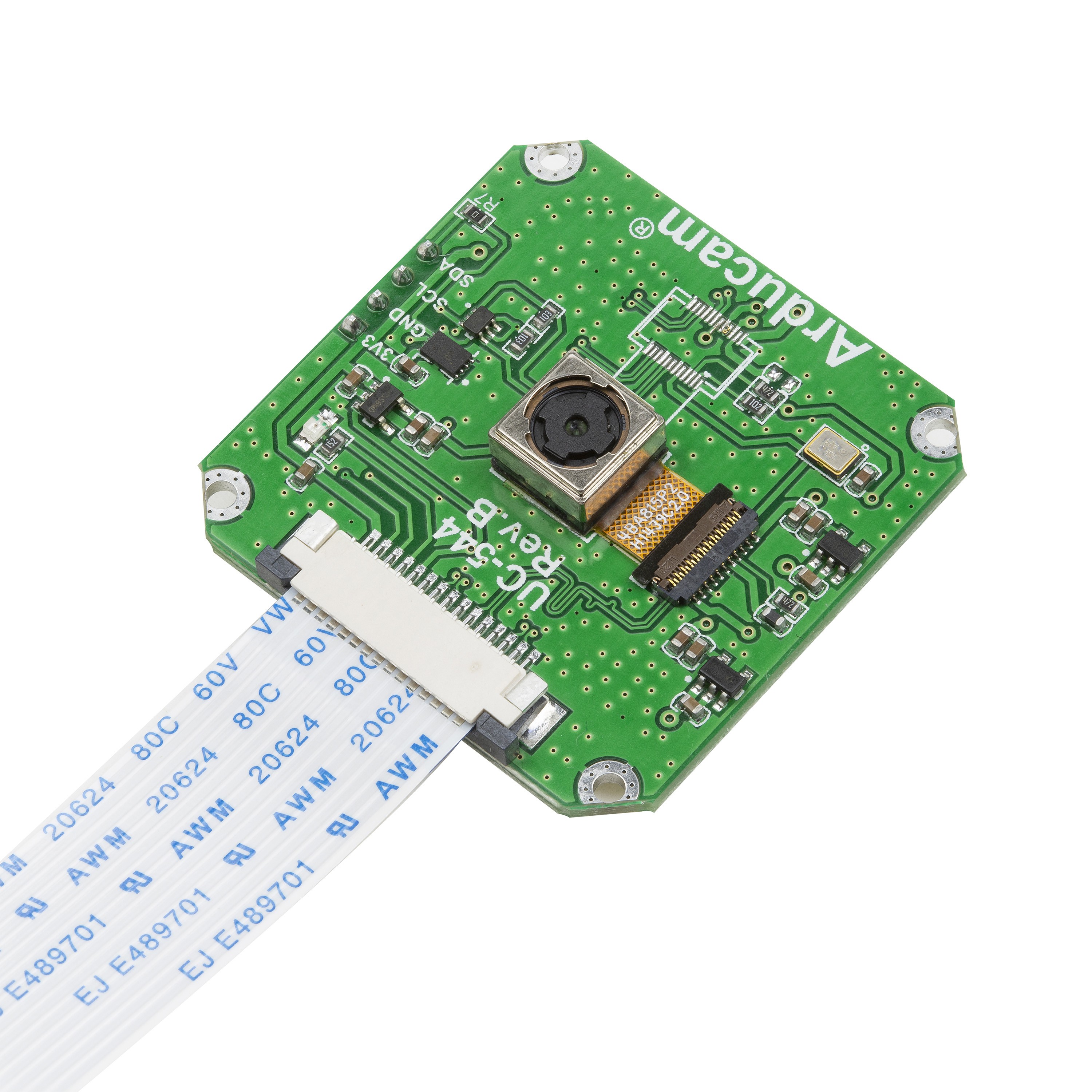

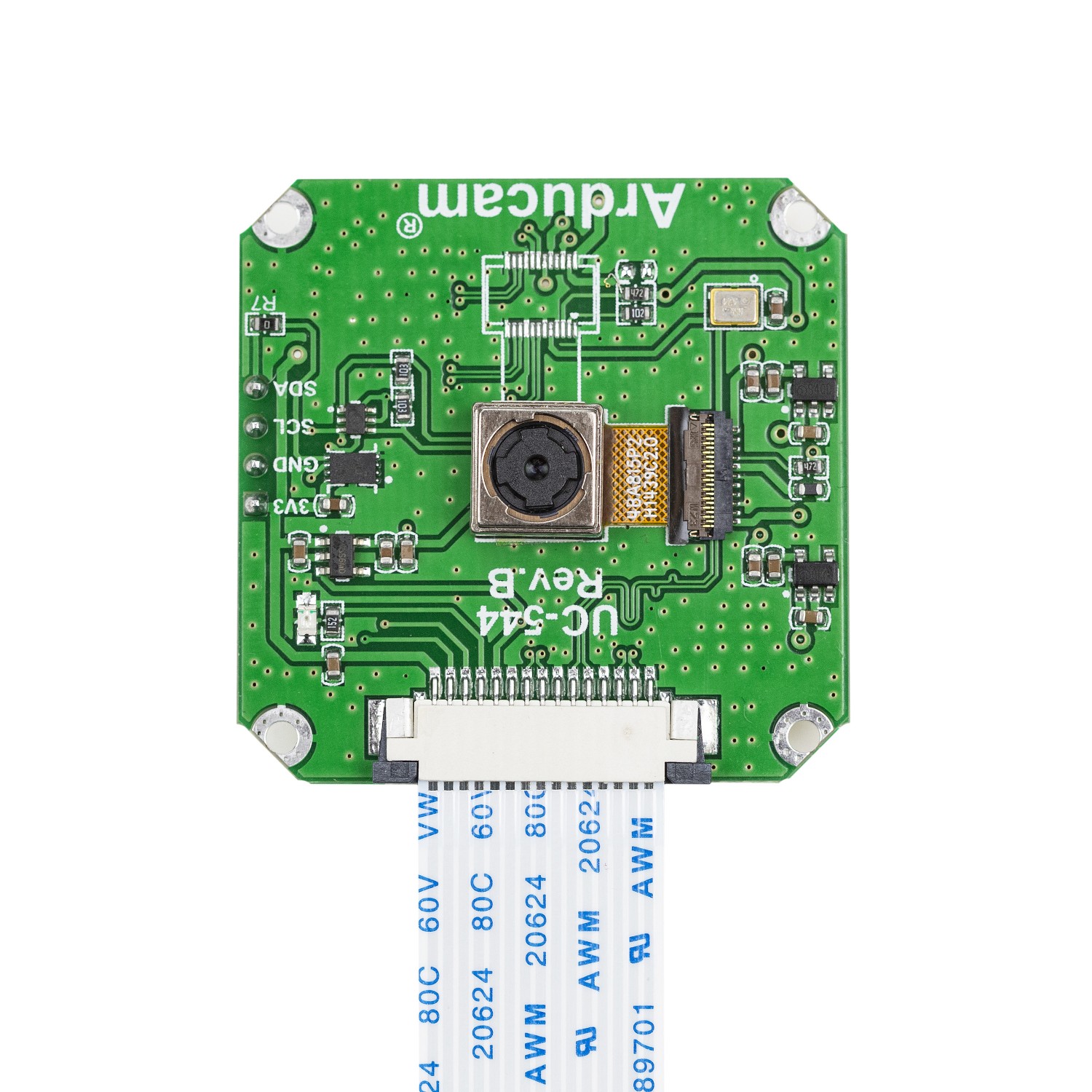

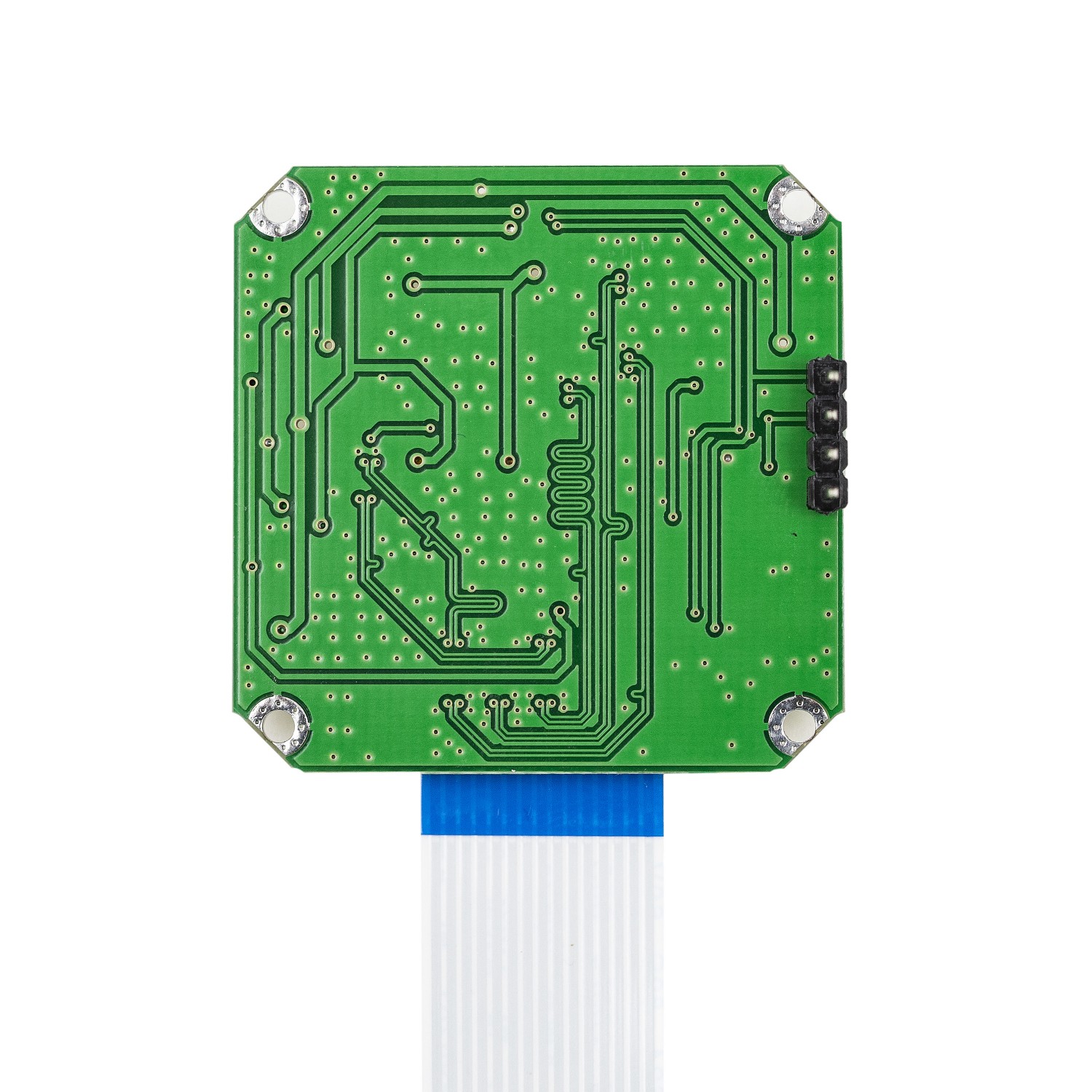

樹莓派可程式化自動對焦攝影鏡頭模組(8MP)
The standard pi camera is fixed focus lens, some of them are glued which can not be adjust by users, and some of them are not glued which can be adjust the lens focus manually. But in certain circumstance, you want to programmable control the focus distance remotely where the device can not be reached. The ArduCAM team now designed motorized control focus 5MP and 8MP camera module for Raspberry Pi series boards to address this problem.
Features
- High-Definition video camera for Raspberry Pi Model A/B/B+ and Raspberry Pi 2B/3B/3B+/4B and Pi Zero
-
8MP IMX219 sensor with motorized focus lens
-
Integral IR filter
-
Angle of View: 54 x 41 degrees
-
Field of View: 2.0 x 1.33 m at 2 m
-
Full-frame SLR lens equivalent: 35 mm
-
Focus distance: 4 cm to infinity (can be customized to much closer distance)
-
Size: 40 x 40 mm
-
15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
Package including:
1pcs Motorized Focus 8MP Camera IMX219 for Raspberry Pi
1pcs 15cm 15pin FPC cable
Additional Resources:
